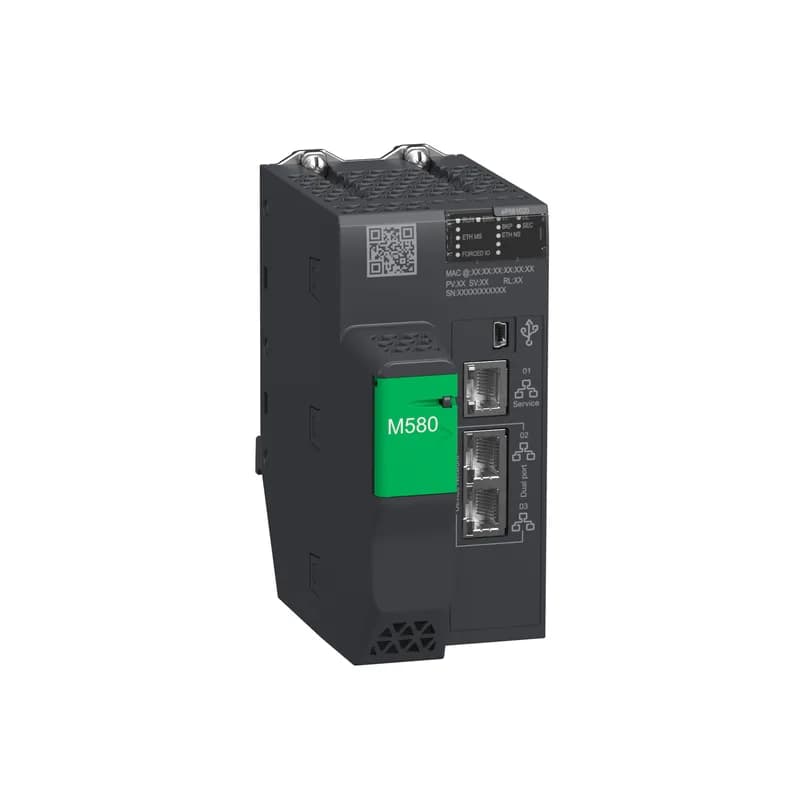

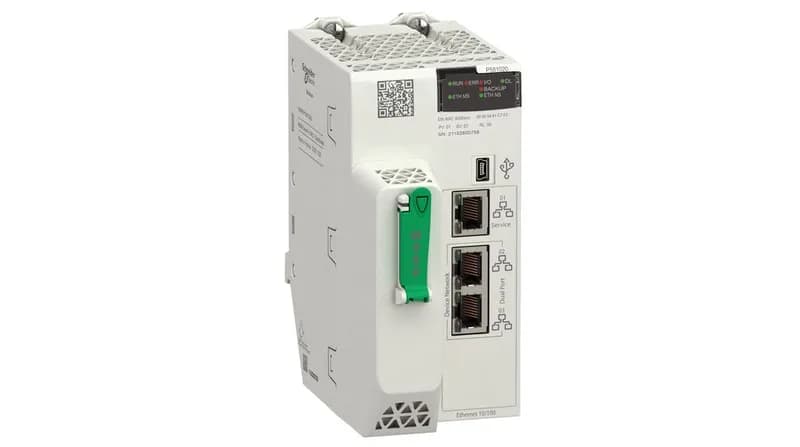

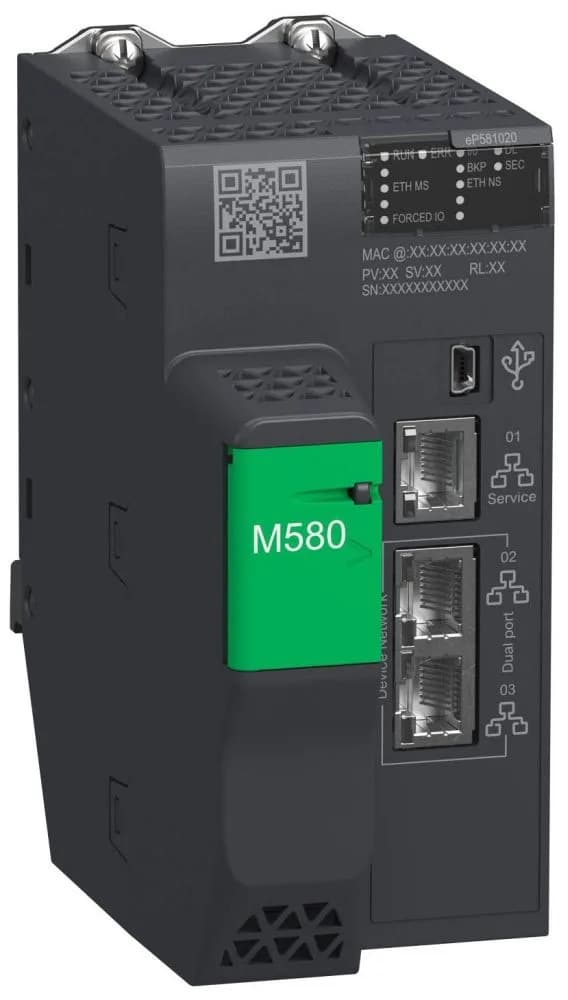

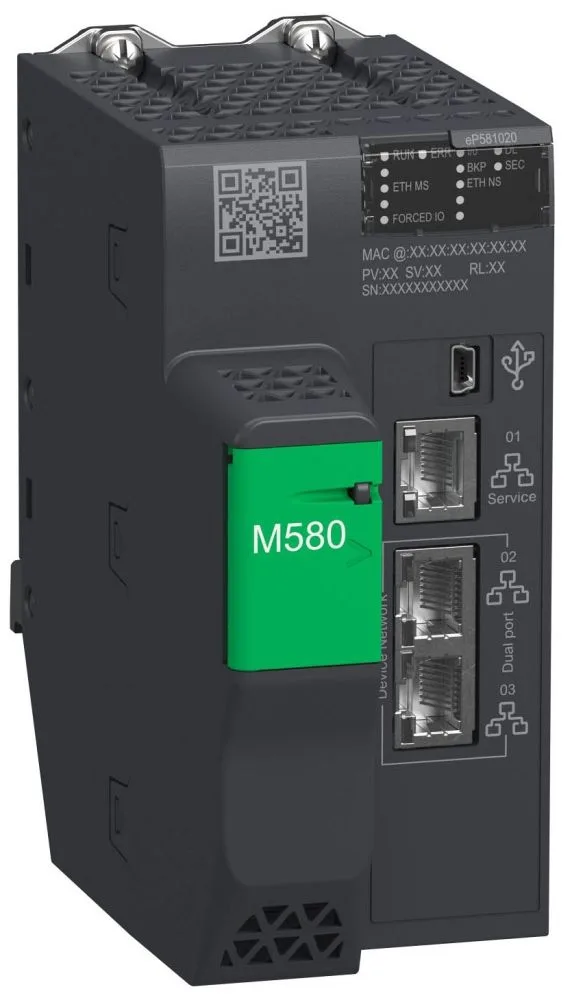

Schneider Electric BMEP581020

Schneider BMEP581020 Modicon M580 PLC, 4 MB program, 1024 I/O

MPNBMEP581020
Active

Schneider BMEP581020 Programmable Logic Controllers.

$1,480.00 – $2,340.70Ref. price · indicative, final on quote
Schneider Electric BMEP581020 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMEP581020 key specifications
ParameterValue
Range of productModicon M580
Product or component typeProcessor module
Integrated connection type1 Ethernet TCP/IP service port 2 Ethernet TCP/IP device network USB type mini B
Current consumption270 mA 24 V DC
IP degree of protectionIP20
Communication serviceDIO scanner
Communication module processor capacity2 Ethernet communication module 2 AS-Interface module
Shock resistance30 gn
Relative humidity5...95 % 131 °F (55 °C) without condensation
Operating altitude0...6561.68 ft (0...2000 m) 2000...5000 m with derating factor
Vibration resistance3 gn
MTBF reliability775000 H

All specifications

BMEP581020 additional specifications
ParameterValue
StandardsIEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G
Compliance (Compliance)TAA BAA via COTS
ChecksProcess control
SupplyInternal power supply via rack
MarkingCE
CategoryUS1PC3418161
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Status LED1 LED (Green) processor running (RUN) 1 LED (Red) processor or system fault (ERR) 1 LED (Red) I/O module fault (I/O) 1 LED (Green) download in progress (DL) 1 LED (Red) memory card or CPU flash fault (BACKUP) 1 LED (green/red) ETH MS (Ethernet port configuration status) 1 LED (green/red) Eth NS (Ethernet network status)
CybersecurityAchilles certified DoS prevention IPSec SNMP logging Syslog protocol support Transport layer security Audit trail Embedded firewall Firmware signature Password protection Port hardening Secure communication (HTTPS) Security log
Number of racks4
Control channelsProgrammable loops
Memory descriptionIntegrated RAM, 4 MB program Integrated RAM, 384 kB data Expandable flash, 4 GB data storage Integrated RAM, 10 kB system memory
Application structure1 periodic fast task 2 auxiliary tasks 1 cyclic/periodic master task 64 event tasks
Application specific i (O)Accurate time stamping Motion control Counter HART SSI encoder Serial link
Environmental characteristicHazardous location class I division 2
Number of instructions per30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic 40 Kinst/ms 100 % Boolean
Number of distributed equipment64
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Ambient air temperature for operation32...140 °F (0...60 °C)
Number of application specific channel (local rack)36

Product details

Overview

The BMEP581020 is a Modicon M580 programmable logic controller from Schneider, built for process control applications with 4 MB of program memory and 384 kB of data memory, expandable via flash to 4 GB for data storage. It supports up to 1024 I/O points across 4 racks, runs on internal power via the rack, and is rated for 30 gn shock, making it suitable for rugged industrial environments. The CPU includes integrated cybersecurity features such as an embedded firewall, Achilles certification, and secure communication (HTTPS), and carries CE, UL, CSA, RCM, and EAC certifications.

Memory and I/O comparison vs TSXP57353LAMC

The BMEP581020 supports up to 1024 I/O points, matching the TSXP57353LAMC's discrete I/O capacity.

Interface and connectivity vs BMENOP0300C

The BMEP581020 provides USB, Ethernet, and AS-Interface ports, while the BMENOP0300C offers three 10/100BASE-TX Ethernet ports with additional protocols like IEC 61850 MMS and GOOSE, Modbus TCP, and RSTP. For applications requiring substation automation or redundant Ethernet, the BMENOP0300C is the better fit; the BMEP581020 suits standard plant-floor networks with AS-Interface integration.

The BMEP581020 is an active Modicon M580 CPU; no obsolescence notice is published. It is available through current distribution channels with typical lead times confirmed via RFQ. Compliance documentation includes CE, UL 61010-2-201, CSA C22.2 No 61010-2-201, IEC 61131-2, and California Proposition 65. The unit is TAA/BAA compliant via COTS.

MPN
BMEP581020
