Schneider Electric BMEXBP0602H

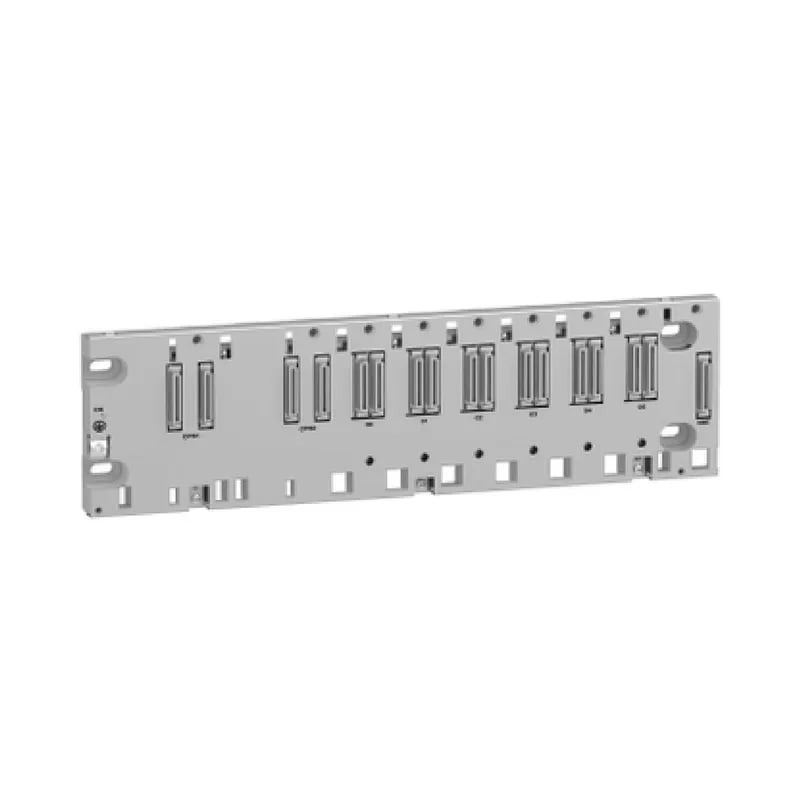

Schneider BMEXBP0602H Modicon X80 Rack 6 Slots

MPNBMEXBP0602H
Active

Schneider Modicon X80 ruggedized rack, 6 slots, severe environment rating, -25 to 70°C, IP20, conformal coated.

$419.10 – $1,109.00Ref. price · indicative, final on quote
Schneider Electric BMEXBP0602H datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMEXBP0602H specifications
ParameterValue
Range of productModicon X80
Accessory (separate part type)Ruggedized rack
Current consumption152 mA at 24 V DC 58 mA at 3.3 V DC
Power consumption in191 mW 3.3 V DC 3.6 W 24 V DC
IP degree of protectionIP20
Electrical connection1 connector (XBE) expansion module
Relative humidity5...95 % without condensation
Product weight1.02 kg
MTBF reliability1353797 H
StandardsIEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 IEC 61000-6-5, interface type 1 and type 2 IEC 61850-3, location G IEC 60079-0
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2014/34/EU - ATEX directive
Fixing modeBy 4 screws - diameter: 4.32...6.35 mm, mounting on panel By 4 M6 screws, mounting on plate By clips, mounting on 35 mm symmetrical DIN rail
Number of slots6 bus X + Ethernet
Protective treatmentConformal coating
Environmental characteristicGas resistant class Gx conforming to ISA S71.04 Gas resistant class 3C4 conforming to IEC 60721-3-3 Dust resistant class 3S4 conforming to IEC 60721-3-3 Sand resistant class 3S4 conforming to IEC 60721-3-3 Salt resistant level 2 conforming to IEC 68252 Mold growth resistant class 3B2 conforming to IEC 60721-3-3 Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 Hazardous location class I division 2
Product specific applicationFor severe environments
Ambient air temperature for operation-25...70 °C

Product details

Delta: BMEXBP0602H vs BMEXBP1200

The BMEXBP1200 offers 8 slots but operates only within 0 to 60°C and lacks DIN-rail clips. The BMEXBP0602H gives you 6 slots with a -25 to 70°C span, mounting via screws, M6 bolts, or clips on 35 mm DIN rail. If your panel was designed around the BMEXBP1200’s 8-slot layout, the 0602H will not drop in without reworking the backplane mounting and verifying slot count. For severe environments, the 0602H's conformal coating and environmental resistance (gas class Gx, dust 3S4, salt level 2) make it the only choice that stays within warranty.

Mounting Options for Panel Builders

Three fixing methods: four screws with diameter 4.32–6.35 mm for panel mounting, four M6 screws for plate mounting, or clips for 35 mm symmetrical DIN rail. The DIN-rail clips are unique to this ruggedized variant—standard X80 racks often omit them. Keep the original packaging if you need to return; we cover rack defects under warranty as long as it wasn't physically damaged during mounting.

Frequently asked questions

What are the key environmental protections on this rack?

It includes conformal coating, and is rated gas resistant class Gx (ISA S71.04) and class 3C4 (IEC), dust and sand resistant class 3S4, salt resistant level 2, and mold/fungal spore resistant class 3B2. It also meets hazardous location Class I Division 2.

Will BMEXBP0602H drop into a panel originally designed for BMEXBP1200?

Not without modifications. The BMEXBP1200 has 8 slots and a different temperature range (0 to 60°C) and does not include DIN-rail clips. Also the mounting holes and current draw differ. They are not direct swaps; you would need to re-engineer the backplane layout and verify environmental conditions.

MPN
BMEXBP0602H
