Schneider Electric BMEXBP1200H

Schneider BMEXBP1200H Ruggedized Rack, 8+4 Slots, -25...70°C

MPNBMEXBP1200H
Active

Schneider BMEXBP1200H, Modicon X80, Ruggedized Rack, 8 bus X + 4 Ethernet bus X slots, IP20, conformal coating, -25…70 °C, active.

$358.14Ref. price · indicative, final on quote
Schneider Electric BMEXBP1200H datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMEXBP1200H specifications
ParameterValue
Range of productModicon X80
Accessory (separate part type)Ruggedized rack
Current consumption164 mA at 24 V DC 86 mA at 3.3 V DC
Power consumption in283 mW 3.3 V DC 3.9 W 24 V DC
IP degree of protectionIP20
Electrical connection1 connector (XBE) expansion module
Relative humidity5...95 % without condensation
Product weight1.377 kg
MTBF reliability1166108 H
StandardsIEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 IEC 61000-6-5, interface type 1 and type 2 IEC 61850-3, location G IEC 60079-0
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2014/34/EU - ATEX directive
Fixing modeBy 4 M6 screws, mounting on plate By 4 screws - diameter: 4.32...6.35 mm, mounting on panel
Number of slots8 bus X + Ethernet 4 bus X
Protective treatmentConformal coating
Environmental characteristicGas resistant class Gx conforming to ISA S71.04 Gas resistant class 3C4 conforming to IEC 60721-3-3 Dust resistant class 3S4 conforming to IEC 60721-3-3 Sand resistant class 3S4 conforming to IEC 60721-3-3 Salt resistant level 2 conforming to IEC 68252 Mold growth resistant class 3B2 conforming to IEC 60721-3-3 Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 Hazardous location class I division 2
Product specific applicationFor severe environments
Ambient air temperature for operation-25...70 °C

Product details

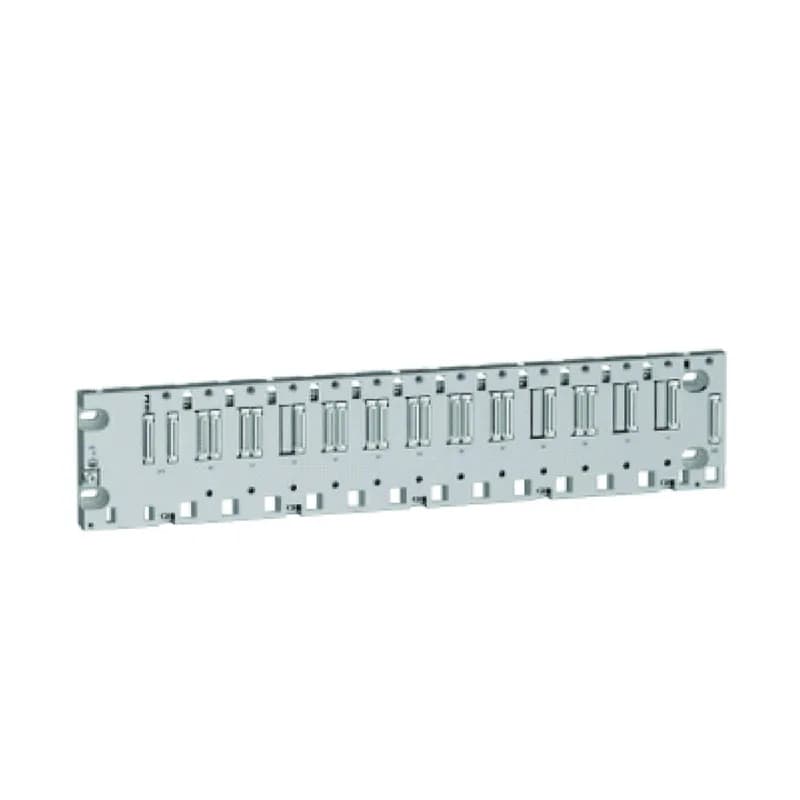

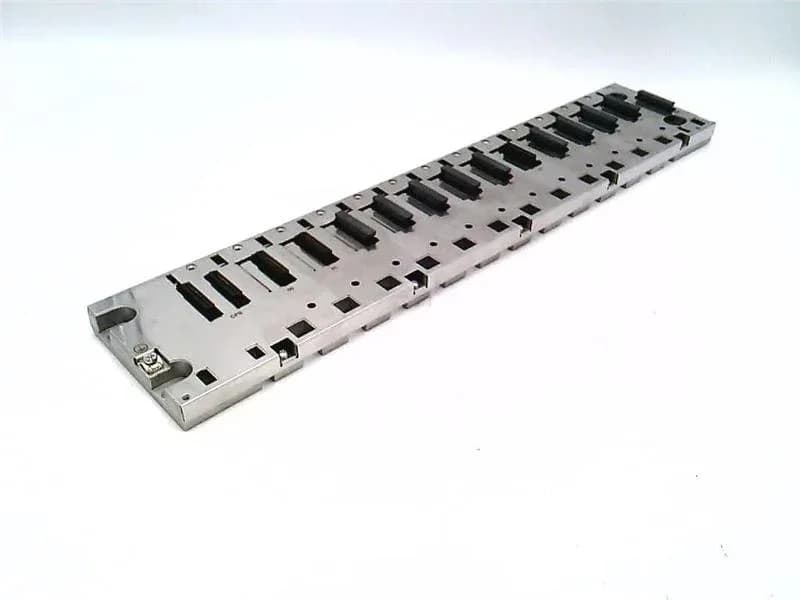

Ruggedized backplane for severe environments

The BMEXBP1200H is a ruggedized Modicon X80 rack designed for applications requiring a wide ambient temperature range of -25 to 70 °C and protection against gas, dust, sand, salt, and mold. It carries conformal coating and is rated IP20. It offers 8 bus X slots for I/O modules plus 4 Ethernet bus X slots, providing more network drops than the standard 2-slot Ethernet rack (BMEXBP1002). Power consumption runs 3.9 W at 24 VDC and 283 mW at 3.3 VDC.

Mounting and physical integration

Mounts via four M6 screws onto a plate, or via four screws 4.32–6.35 mm diameter onto a panel. This matches the mounting pattern of the standard X80 racks, so a swap from BMEXBP1002 or BMEXBP0602 requires no panel rework.

Compliance and environmental resistance

The rack holds certifications to IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No. 61010-2-201, IACS, IEC 61000-6-5 (interface types 1 and 2), IEC 61850-3 (location G), and IEC 60079-0. It complies with the EU Low Voltage Directive, EMC Directive, and ATEX Directive. Environmental resistance includes gas class Gx (ISA S71.04), class 3C4 (IEC 60721-3-3), dust and sand class 3S4, salt level 2 (IEC 68252), and mold/fungal spore class 3B2. Also rated for hazardous location Class I Division 2. Lifecycle status is active with no end-of-life announcements. MTBF is 1,166,108 hours.
