What the module is, and what it actually scans

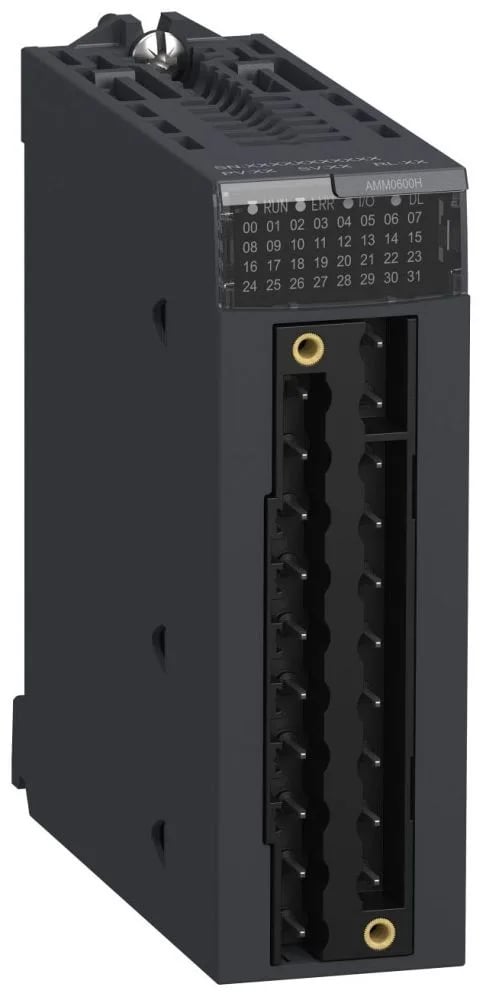

The Schneider Electric BMXAMM0600H is a mixed analog I/O module in the Modicon X80 range, carrying 4 analog inputs and 2 analog outputs on a single 20-way connector with an IP20 rating, and is qualified for severe environments via conformal coating. The input stage accepts current 0-20 mA, current 4-20 mA, voltage ±10 V, voltage 0-10 V, voltage 0-5 V and voltage 1-5 V; the output stage drives current 0-20 mA, current 4-20 mA and voltage ±10 V. Temperature drift sits at 100 ppm/°C on every output range, 30 ppm/°C on the voltage inputs (±10 V, 0-10 V, 0-5 V, 1-5 V) and 50 ppm/°C on the 0-20 mA and 4-20 mA inputs — a useful spec to keep on hand when justifying a calibration interval to an auditor. Conversion time is ≤2 ms, the nominal read cycle is 5 ms for 4 channels, and the fast read cycle runs 1 ms + 1 ms per channel used, which is what the application logic actually sees when it polls the module.
Resolution, isolation, and the wiring story
Input resolution is 12 bits on 0-20 mA, 4-20 mA, 0-5 V and 1-5 V, 13 bits on 0-10 V and 14 bits on ±10 V; output resolution is 11 bits on 0-20 mA and 4-20 mA and 12 bits on ±10 V. Common-mode rejection is 80 dB, and the channel-to-channel path is non-isolated — the 1400 V DC barrier sits between channels and ground and between channels and the backplane, with 750 V DC between grouped I/O channels. Permitted input overload is ±30 mA on the current ranges and ±30 V on every voltage range, and the maximum conversion envelope tops out at ±11.25 V on the ±10 V ranges, 0-30 mA on the current inputs and 0-24 mA on the current outputs — useful to confirm before pointing the module at a misconfigured transmitter.
Power, backplane, and cabinet footprint
The module draws 240 mA at 3.3 V DC from the backplane and dissipates 2.6 W typical / 3.2 W maximum at 24 V DC (0.35 W typical / 0.48 W maximum at 3.3 V DC) — a sensible line item for a rack power budget. Front-face wiring lands on a single 20-way connector and the module slots into the standard X80 rack as an IP20 build, so panel layout and cable routing follow the usual Modicon X80 conventions. Operating altitude is 0-2000 m unrestricted and 2000-5000 m with a derating factor; relative humidity tolerance is 5-95% at 55 °C without condensation.
Diagnostics, filtering, and recovery behaviour
Front-panel indication is one green RUN LED, one green channel-diagnostic LED per channel, a red ERR LED and a red I/O LED — enough granularity to point a commissioning engineer at the offending channel without pulling out a terminal. Input recalibration is handled internally in firmware, outputs are factory calibrated, filtering is a first-order digital filter implemented in firmware, and the fallback mode is configurable between predefined and user-defined states, so a comms-loss event can be made to hold last value or drive to a safe output.
Compliance, environment, and the 'H' suffix
The part is held to IEC 61010-2-201, IEC 61131-2, UL 61010-2-201 and CSA C22.2 No 61010-2-201, and is declared against the 2014/35/EU low-voltage and 2014/30/EU electromagnetic-compatibility directives. The 'H' suffix denotes the severe-environments variant: conformal-coated, rated gas-resistant class Gx and class 3C4, dust/sand resistant class 3S4, salt resistant level 2, and mold growth / fungal spore resistant class 3B2 — which is the reason this code, not the standard BMXAMM0600, is on marine, offshore, wastewater and similar panels. Mechanical robustness is 30 gn shock resistance and 3 gn vibration resistance, with an MTBF figure of 1,400,000 hours.
