What the BMXDDI1604T is, and where it slots in

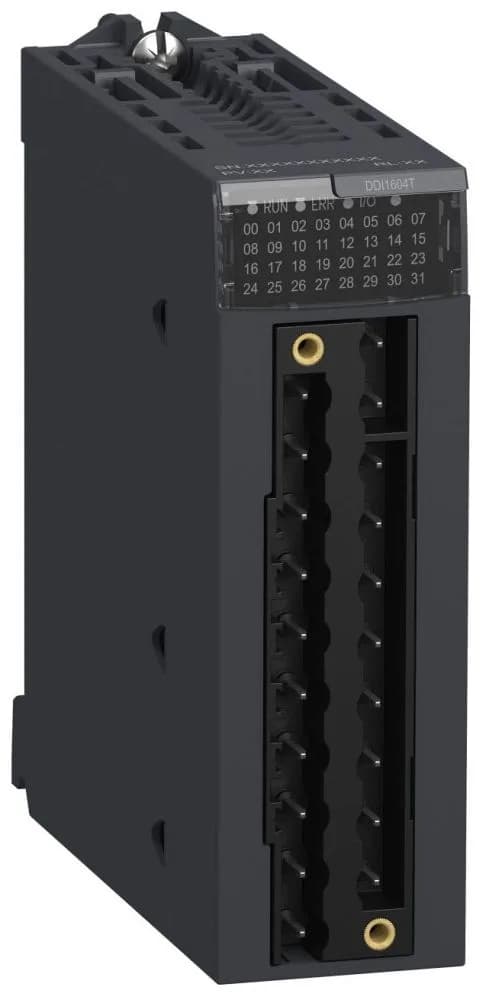

The Schneider Electric BMXDDI1604T is a discrete input module in the Modicon X80 I/O family, carrying 16 isolated inputs rated for 125 V DC, and it occupies a single slot on the X80 backplane next to the CPU or BMX bus extender. Each channel reads a 125 V DC field signal through a positive-logic (sink) input stage, with the module's sensor power supply covering the 100...150 V DC range that drives the field-side source. Logic thresholds are explicit on the module face: voltage state 1 is guaranteed at >= 88 V and current state 1 at >= 2 mA, while state 0 holds with input resistance of 10 MOhm at 500 V DC — and the detection window tags any sensor reading as fault when it sits below 80 V DC and as OK once it climbs above 100 V DC. Where the class is used: 125 V DC discrete input modules feed digital field signals — limit switches, contactors, proximity switches wired through an isolated power supply, and similar dry-contact or solid-state sources — into a PLC scan on industrial control panels.
Scan timing and what the integrator feels
Response time on the 125 V DC input is 5 ms typical and 9 ms maximum, which puts the BMXDDI1604T in the millisecond-class DI tier rather than a high-speed counter slice — fine for general limit and status inputs, not for rapid event capture. Input current at the 125 V DC nominal is 2.4 mA per point, a low figure that lets the field wiring budget ignore point load when sizing the isolated supply. Hot swapping is supported, so a failed BMXDDI1604T can be pulled and replaced on a live X80 rack without dropping adjacent modules — useful for service windows on a running line. Isolation between channels and bus is rated 1500 V for 1 minute, and primary/secondary dielectric strength is 2500 V AC at 50/60 Hz for 1 minute, which is the figure to cite when the panel's insulation coordination is reviewed.
Backplane power and thermal envelope
The module draws 76 mA typical from the backplane at 3.3 V DC and never more than 107 mA, which keeps the X80 power budget manageable even with several digital slices in one rack. Dissipation shifts with ambient temperature: 3.2 W baseline, rising to 5.0 W at 60 °C, 6.7 W at 50 °C, and 8.5 W at 40 °C — note that the published dissipation figures rise as ambient falls, which is the reverse of the usual derating curve and reflects the module's normal operating dissipation profile. Operating ambient air temperature spans -25...70 °C, with derating starting above 2000 m altitude up to the 5000 m ceiling — a panel spec that goes into a high-altitude cabinet must apply the altitude derating factors rather than rely on the sea-level ratings.
Mechanical fit and DIN-rail reality
The enclosure is rated IP20, suitable for a closed cabinet and not for exposed field mounting without an additional housing. Front-face signalling gives the field tech four diagnostic points per module: a green RUN LED for module operating state, a red ERR LED for module error, a red I/O LED for module I/O, and one green LED per channel for channel diagnostic — so a single-channel fault reads directly off the module face without pulling out a laptop.
Compliance marks on the nameplate
The module carries the CE, UKCA, cULus, RCM, and EAC markings, and is declared against 2014/35/EU (low voltage) and 2014/30/EU (EMC) — covering the European conformity frame, the UK post-Brexit regime, North American UL recognition, Australian/NZ RCM, and the Eurasian Customs Union. Environmental characteristic classes include gas resistant class Gx and 3C4, dust resistant class 3S4, sand resistant class 3S4, salt resistant level 2, and mold growth / fungal spore resistant class 3B2 — relevant for corrosive or coastal cabinets. Pollution degree 2 applies, MTBF is 888402 H, shock resistance is 30 gn, and vibration resistance is 3 gn, which is the mechanical envelope a cabinet integrator will see repeated across the X80 family. Storage temperature spans -40...85 °C, wider than the operating range, so the figure governs handling and logistics rather than running conditions.
Lifecycle posture
Lifecycle stage is current, and the BMXDDI1604T is specified into the BOM as a quoted-to-order line — buyers maintaining Modicon X80 racks can hold this order code against an RFQ.
Sourcing posture
The BMXDDI1604T is specified into the BOM line rather than walked back to a substitute — keep the order code intact on the panel drawing and quote it directly. A parallel import still ships as genuine hardware with a region-of-sale paperwork caveat rather than a local warranty.
