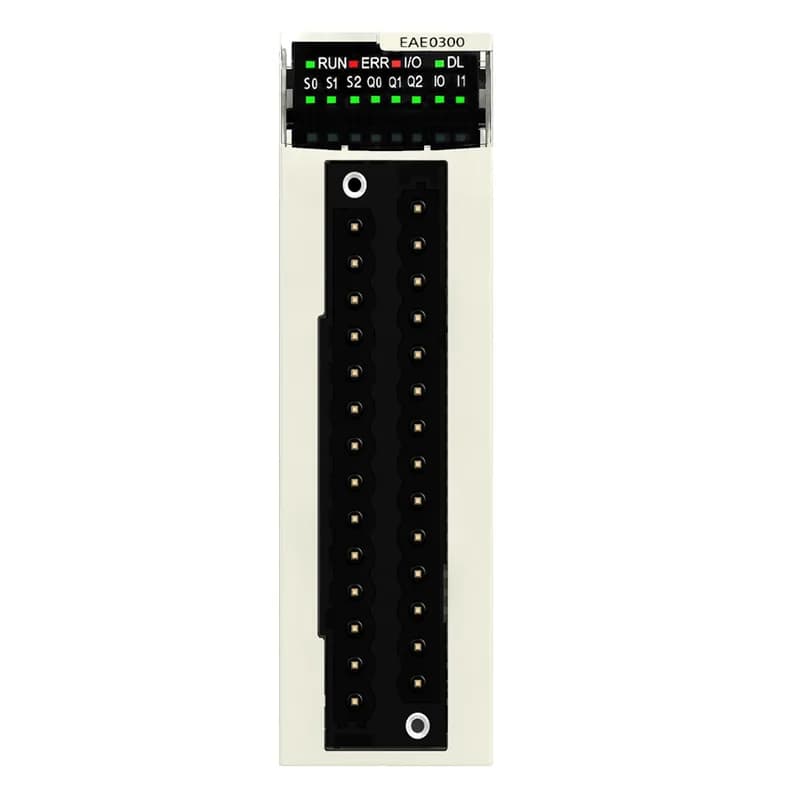

Schneider Electric BMXEAE0300

Schneider BMXEAE0300 Modicon X80 Encoder Interface, 3 SSI, 1

MPNBMXEAE0300
Active

Schneider Modicon X80 encoder interface module, 3 SSI channels, 8...31 bit data, 1 ms refresh, 24 V DC supply, IP20.

$375.92 – $861.00Ref. price · indicative, final on quote
Schneider Electric BMXEAE0300 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXEAE0300 specifications
ParameterValue
Protection typeOvervoltage protection DC
Range of productModicon X80
Product or component typeEncoder interface module
Supply voltage19.2...30 V DC, 24 V DC, <30 mA (typical)
Current consumption150 mA at 3.3 V DC for back plane, (typical) 250 mA at 3.3 V DC for back plane, (maximum)
I/O channels2 24 V DC capture digital inputs for the 3 SSI channels
IP degree of protectionIP20
Operating altitude0...4000 m
StandardsIEC 61010-2-201 IEC 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Data format8...31 bits
Refresh time1 ms
Transmission rate500 kbauds 200 kbauds 1 Mbauds 100 kbauds
Function availableOffset Compare Modulo Reduction Capture
Channels3 SSI channel
Dielectric strength1400 V DC 60 s
Input compatibility24 V DC SSI absolute encoder (voltage limits: 19.2...30 V) for 200 mA per channel
Ambient air temperature for operation0...60 °C

Product details

The Schneider BMXEAE0300 is a Modicon X80 encoder interface module providing three SSI channels for absolute position feedback. Each channel includes two 24 V DC capture digital inputs and one reflex digital output, allowing direct connection to SSI encoders within 19.2...30 V DC at up to 200 mA per channel. Data format ranges from 8 to 31 bits with a refresh time of 1 ms, delivering deterministic updates for motion control applications.

The module draws 150 mA (typical) / 250 mA (max) from the 3.3 V backplane rail. Its IP20 housing fits standard Modicon X80 racks. Overvoltage protection on the encoder supply side keeps the module from frying if a mis‑wire sends 30 V down the line. Operating temperature 0...60 °C and altitude up to 4000 m cover most panel environments.

Frequently asked questions

What standards does BMXEAE0300 comply with?

It is certified to IEC 61010‑2‑201, IEC 61131‑2, UL 61010‑2‑201, and CSA C22.2 No. 61010‑2‑201. It also meets the EU Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU.

Can BMXEAE0300 be used as a replacement for S48890?

No. S48890 is a restraint interface module (protection accessory) with a different function and form factor. The BMXEAE0300 is an SSI encoder interface belonging to the Modicon X80 family and is not a drop‑in replacement.

What compliance documentation is provided with BMXEAE0300?

The module ships with declarations covering UL/CSA/IEC standards and the EU directives listed above. Specific RoHS/REACH details are not in the provided evidence but standard Schneider documentation applies.
