Schneider Electric C25R45E160 — Miniature Circuit Breakers (MCB)

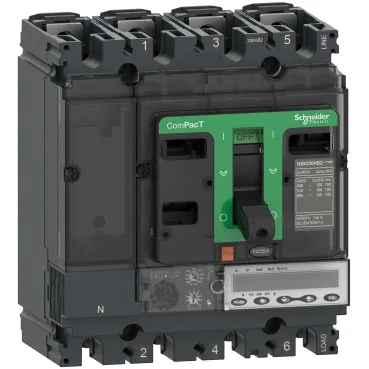

Schneider C25R45E160 ComPacT NSX circuit breaker, 160 A, 200 kA

MPNC25R45E160
Active

Schneider C25R45E160 Compact Nsx, New Generation — now discontinued, supplied from remaining surplus and broker stock.

$2,100.66Ref. price · indicative, final on quote
Schneider Electric C25R45E160 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

C25R45E160 — Identification
ParameterValue
Product nameComPacT NSX
Product rangeComPacT
Product/component typeCircuit breaker
Device applicationDistribution
C25R45E160 — Ratings
ParameterValue
Rated current (In)160 A at 40 °C
Poles configuration4P
Breaking capacity200 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 200 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 200 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 80 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 65 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 45 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Rated service breaking capacity (Ics)200 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 200 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 200 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 80 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 65 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 45 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Rated operational voltage (Ue)690 V AC 50/60 Hz
Rated insulation voltage (Ui)800 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Network type (AC/DC)AC
Network frequency50/60 Hz
Utilisation categoryCategory A
Overvoltage categoryIII
C25R45E160 — Protection
ParameterValue
Trip unit technologyElectronic
Earth-leakage protectionWithout
Suitability for isolationYes conforming to EN/IEC 60947-2
Electrical durability (cycles)20000 cycles at 440 V In/2 10000 cycles at 440 V In 10000 cycles at 690 V In/2 5000 cycles at 690 V In
Mechanical durability (cycles)20000 cycles
C25R45E160 — Mechanical
ParameterValue
Mounting supportBackplate
Control typeToggle
Local signalling/indicationFlashing LED (green) for ready to operate LED 105 % Ir (red) for overload LED 90 % Ir (orange) for overload
C25R45E160 — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
C25R45E160 — Approvals
ParameterValue
StandardsEN/IEC 60947-2
C25R45E160 — Specifications
ParameterValue
[Ir] long-time protection pick-up adjustment range63...160 A
Trip unit protection functionsLSI

Product details

Overview

The C25R45E160 is a Schneider ComPacT NSX molded case circuit breaker rated 160 A at 40 °C with a 200 kA breaking capacity at 690 V AC, fitted with a MicroLogic 5.2 E electronic trip unit providing LSI protection (long-time, short-time, instantaneous). It is a 4-pole fixed-mount unit, 140 mm wide, 161 mm high, 86 mm deep, with a toggle control and an LCD display for energy metering and event logs.

Compared to the C25N3 basic frame, the C25R45E160 carries a MicroLogic 5.2 E electronic trip unit with LSI protection and a 200 kA breaking capacity versus 85 kA on the C25N3, making it the choice for high-fault-current distribution panels where selectivity and energy metering are required.

MPN
C25R45E160
