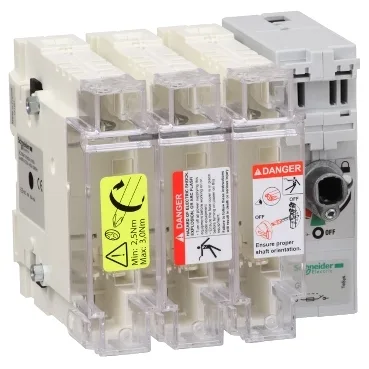

Schneider Electric GS2J3
MPNGS2J3
Obsolete
TeSys GS - switch-disconnector-fuse - 3 P - 100A - NFC 22 x 58 mm
$302.29 – $341.28Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Fuse type | NFC |
| Network type | AC DC |
| Type of operating handle | External frontal External right side |
| Product or component type | Switch-disconnector-fuse |
| Contacts type and composition | 3 NO |
| Short-circuit withstand | 20 kA |
| Voltage | 750 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Breaking capacity | 800 A at 400 V (AC-23B) |
| [Ie] rated operational current | 100 A at 440 V 2 poles in series per phase DC-23A 100 A at 440 V 2 poles in series per phase DC-23B 100 A at 690 V poles not juxtaposed AC-23A 100 A at 690 V poles not juxtaposed AC-23B 100 A at 400 V AC-23A 100 A at 400 V AC-23B 100 A at 500 V AC-23A 100 A at 500 V AC-23B |
| [Icm] rated short-circuit making capacity | 80 kA at 400 V with protection by gG fuses |
| [Ith] conventional free air thermal current | 100 A (at 40 °C) |
All specifications
| Parameter | Value |
|---|---|
| Rated operational power in | 51 kW at 400 V 63 kW at 500 V 90 kW at 690 V |
| Network frequency | 50/60 Hz |
| Poles description | 3P |
| Protected poles description | 3t |
| IP degree of protection | IP20 conforming to IEC 60529 (with terminal cover) |
| Mounting support | Plate |
| Connections - terminals | Power circuit: bars 20 mm² Power circuit: lugs-ring terminals 25...95 mm² |
| Depth | 116 mm |
| Width | 148 mm |
| Height | 162 mm |
| Electrical durability | 1500 cycles AC-23A 1500 cycles AC-23B 300 cycles AC-23A 300 cycles AC-23B |
| Mechanical durability | 10000 cycles |
| Standards | IEC 60947-3 |
| Range | TeSys |
| Fuse size | 22 x 58 mm |
| Fire resistance | 850 °C fuse cover conforming to IEC 60695-2-1 960 °C body conforming to IEC 60695-2-1 |
| Making capacity | 1000 A at 400 V AC-23B |
| Device short name | GS2J |
| Tightening torque | Power circuit: 12 N.m |
| Ambient air temperature for storage | -40...80 °C |
| Ambient air temperature for operation | -20...70 °C |
MPN
GS2J3
