Schneider Electric LP5K12017BW3 — Contactors

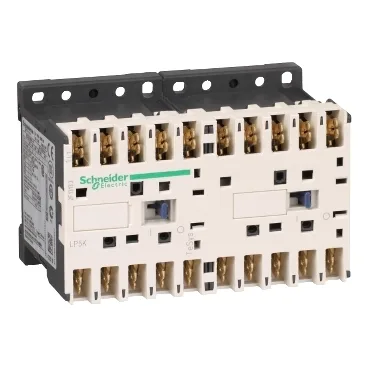

Schneider TeSys K LP5K12017BW3 Reversing Contactor, 12 A AC-

MPNLP5K12017BW3
Active

Schneider Electric TeSys K reversing contactor, LP5K12017BW3, 3P, AC-3 ≤440 V 12 A, 1 NC, 24 V DC coil, preassembled with reversing power busbar.

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

LP5K12017BW3 — Identification
ParameterValue
Product / component typeReversing contactor
Series / rangeTeSys
ApplicationResistive load Motor control
LP5K12017BW3 — Ratings & Performance
ParameterValue
Rated operational voltage (Ue)Power circuit: 690 V AC 50/60 Hz Signalling circuit: 10 MOhm for signalling circuit
Utilisation categoryAC-1 AC-4 AC-3
LP5K12017BW3 — Contacts & Poles
ParameterValue
Pole configuration3P
LP5K12017BW3 — Environmental
ParameterValue
IP degree of protectionIP20 conforming to VDE 0106
Operating altitude2000 m without derating
Mechanical robustnessShocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 Shocks contactor opened, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Y axis: 6 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on X axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27
Protective treatment / pollution degreeTC conforming to IEC 60068 TC conforming to DIN 50016
Flame retardanceV1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
LP5K12017BW3 — Mechanical
ParameterValue
Width90 mm
Height58 mm
Depth57 mm

Product details

The Schneider Electric TeSys K LP5K12017BW3 is a reversing contactor — a single device that handles forward/reverse switching for a three-phase motor without a separate mechanical interlock. It's preassembled with the reversing power busbar, so the interlock wiring is already in place. Rated 12 A in AC-3 duty up to 440 V, it controls motors up to roughly 5.5 kW at 400 V (common rule of thumb for this class). The 24 V DC coil with one normally-closed auxiliary contact suits PLC-driven panels where the control voltage is 24 VDC and the NC contact can be used for status feedback or safety chain monitoring.

AC-3 at 12 A means this contactor is rated for starting and stopping squirrel-cage motors — the worst-case current is during start-up (typically 6-8x FLA), and the contactor must handle that without welding. The 12 A figure is the motor full-load current it can switch, not the inrush. AC-4 rating (also listed) covers plugging and inching duty where the contactor opens under full locked-rotor current; that's a harder thermal cycle, so if your application involves frequent reversing under load, the AC-4 rating is the one to watch.

The 57 mm depth and 90 mm width fit a standard 4-module-wide panel footprint. Preassembled reversing busbar saves the wiring step that's a common source of errors — no risk of mis-wiring the mechanical interlock.

Frequently asked questions

What is the closest alternative in the same family?

Within the TeSys K series, the closest variant would be a different coil voltage or auxiliary contact configuration. For example, LP5K12017BW4 uses a 24 V AC coil instead of 24 V DC. The footprint and ratings are identical; only the coil supply changes. There is no pin-compatible substitute from a different series — the reversing busbar is specific to the reversing contactor variant.
