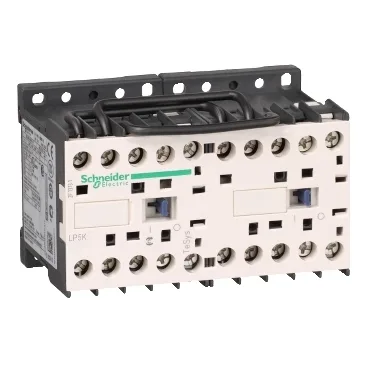

Schneider Electric TeSys K reversing contactor, LP5K1201FW3, 3P, AC-3 12A at 440V, 110V DC coil, 1 NC auxiliary, IP20, preassembled with reversing power busbar.
| Parameter | Value |
|---|---|
| Product / component type | Reversing contactor |
| Series / range | TeSys |
| Application | Resistive load Motor control |
| Parameter | Value |
|---|---|
| Rated operational voltage (Ue) | Power circuit: 690 V AC 50/60 Hz Signalling circuit: 10 MOhm for signalling circuit |
| Utilisation category | AC-1 AC-4 AC-3 |
| Parameter | Value |
|---|---|
| Pole configuration | 3P |
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 conforming to VDE 0106 |
| Operating altitude | 2000 m without derating |
| Mechanical robustness | Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 Shocks contactor opened, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Y axis: 6 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on X axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 |
| Protective treatment / pollution degree | TC conforming to IEC 60068 TC conforming to DIN 50016 |
| Flame retardance | V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102 |
| Parameter | Value |
|---|---|
| Width | 90 mm |
| Height | 58 mm |
| Depth | 57 mm |
The 110 V DC coil gives you a standard control voltage for many industrial panels.
The contactor also carries AC-1 (resistive load) and AC-4 (inching/plugging) utilisation categories, so it's not limited to just motor starts. The 110 V DC coil draws a steady hold current; verify your control transformer and rectifier can supply it without sag. Operating altitude of 2000 m without derating covers most standard installations.
The manufacturer does not list a direct official successor for this order code. For a new design, you would need to select a current TeSys reversing contactor with matching pole count (3P), AC-3 current rating (12 A at 440 V), and 110 V DC coil voltage. Mounting dimensions and auxiliary contact configuration may differ, so verify the physical fit and wiring before ordering.
The listed depth is 57 mm. Overall dimensions are 90 mm wide by 58 mm high.
