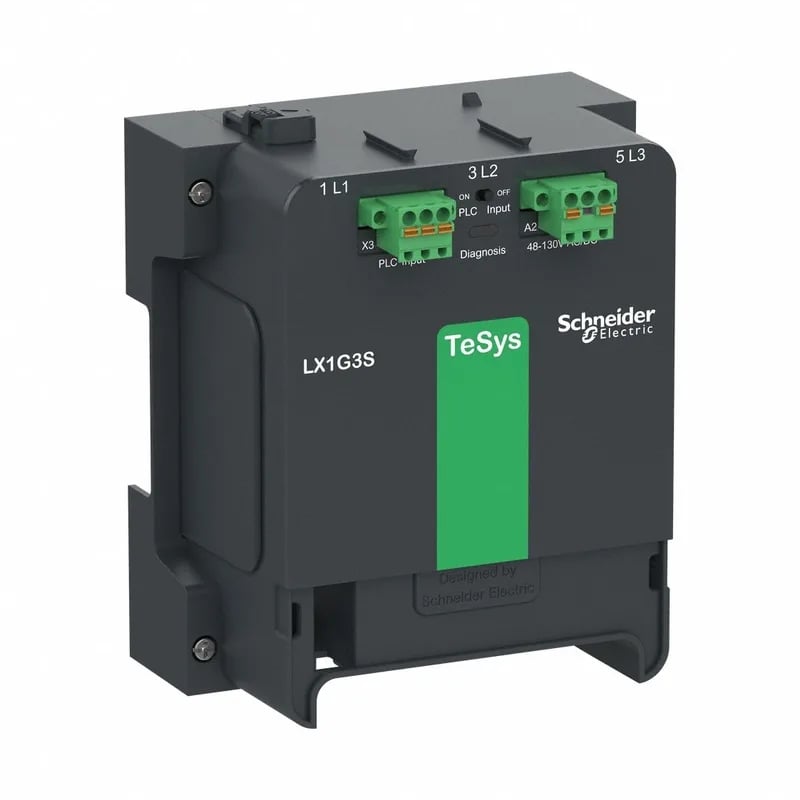

Schneider Electric LX1G3SLSEA

Schneider LX1G3SLSEA TeSys Contactor Coil, 200-500 V AC/DC

MPNLX1G3SLSEA
Active

Schneider TeSys, LX1G3SLSEA, Contactor coil, 200-500 V AC/DC, 3 poles, IP20, active.

$425.90Ref. price · indicative, final on quote
Schneider Electric LX1G3SLSEA datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LX1G3SLSEA key specifications
ParameterValue
Product or component typeContactor coil
Coil voltage200...500 V AC/DC 50/60 Hz
Control circuit voltage limitsOperational 0.8...1.1 Uc 140 °F (60 °C)) Drop-out 0...0.45 Uc 140 °F (60 °C))
Inrush power in400 VA 480 V AC, 60 Hz
Hold-in power consumption in14.9 VA 480 V AC, 60 Hz
Poles description3P
IP degree of protectionIP20 IEC 60529
Connections - terminalsControl circuit push-in termination 1 0.0003...0.004 in² (0.2...2.5 mm²) solid stranded without cable end sleeve AWG 26...AWG 12 Control circuit push-in termination 1 0.0004...0.004 in² (0.25...2.5 mm²) flexible with cable end sleeve AWG 24...AWG 14 Control circuit push-in termination 2 0.0008...0.002 in² (0.5...1.0 mm²) rigid or stranded with cable end sleeve AWG 20...AWG 18
Pollution degree3 IEC 60947-1
Operating altitude9842.52 ft (3000 m) without derating 5000 m with derating factor
Depth3.7 in (93.0 mm)
Width5.5 in (140.0 mm)

All specifications

LX1G3SLSEA additional specifications
ParameterValue
Height6.6 in (167.0 mm)
Mechanical durability5 Mcycles
StandardsEN/IEC 60947-4-1 UL 60947-4-1A CSA C22.2 No 60947-4-1
RangeTeSys
CategoryUS10I1222328
Operating time20...35 ms opening 40...55 ms closing
Coil technologyBuilt-in bidirectional peak limiting
Quantity per set1
Device short nameLX1G
Maximum operating rate600 cyc/mn 140 °F (60 °C)
Electromagnetic compatibilityEMC immunity conforming to IEC 60947-4-1 Emission tests criteria A conforming to IEC 60947-4-1 Immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3 Voltage dips and interruptions immunity test conforming to SEMI F47
Ambient air temperature for storage-76...176 °F (-60...80 °C)
Ambient air temperature for operation-13...140 °F (-25...60 °C)
Permissible ambient air temperature around the device-40...158 °F (-40...70 °C) at Uc

Product details

Contactor coil for TeSys contactors

The LX1G3SLSEA is a contactor coil in the Schneider TeSys range, designed for 3-pole contactors. It accepts a control circuit voltage of 200...500 V AC/DC at 50/60 Hz.

Control voltage and power draw

Inrush power peaks at 260 W DC or 400 VA at 480 V AC, 60 Hz; once closed, hold-in drops to 4.8 W DC or 14.9 VA at 480 V AC. Operating time measured at 20...35 ms opening and 40...55 ms closing.

Measures 3.7 x 5.5 x 6.6 in (93 x 140 x 167 mm). Push-in terminals for the control circuit accept 0.2...2.5 mm² solid or stranded (AWG 26...12) and 0.25...2.5 mm² flexible with cable end sleeve (AWG 24...14). IP20 protection rating.

Environment and durability

Rated for pollution degree 3 per IEC 60947-1, operational temperature -25...60 °C, storage -60...80 °C. Mechanical durability 5 Mcycles; maximum operating rate 600 cyc/mn at 60 °C.

Frequently asked questions

What control voltage does this coil accept?

It accepts 200...500 V AC/DC at 50/60 Hz, covering a wide range of common control circuits.

What standards does the LX1G3SLSEA comply with?

It complies with EN/IEC 60947-4-1, UL 60947-4-1A, and CSA C22.2 No 60947-4-1.

MPN
LX1G3SLSEA
