Schneider Electric 140DAI54000

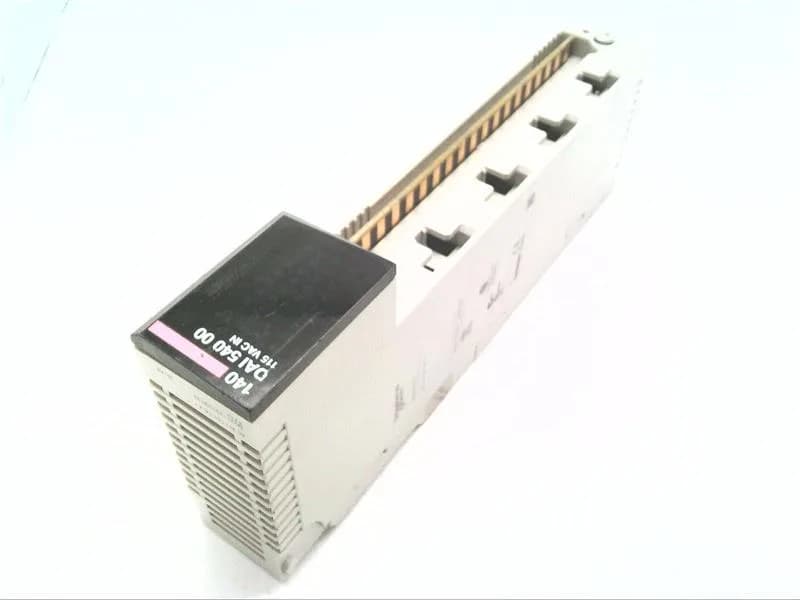

Schneider 140DAI54000 Modicon Quantum 16-point 115 VAC discrete input module

MPN140DAI54000
End of Life

Schneider 140DAI54000 Plc Expansion Modules — now discontinued, supplied from remaining surplus and broker stock.

$576.80 – $946.00Ref. price · indicative, final on quote
Schneider Electric 140DAI54000 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

140DAI54000 key specifications
ParameterValue
Range of productModicon Quantum automation platform
Product or component typeVAC discrete input modules
Discrete input voltage115 V AC
Voltage state 0 guaranteed0...20 V AC 57...63 Hz 0...20 V AC 47...53 Hz
Voltage state 1 guaranteed79...132 V AC 57...63 Hz 85...132 V AC 47...53 Hz
Input current11.1 mA 57...63 Hz 13.2 mA 47...53 Hz
Bus current requirement180 mA
Maximum leakage current2.1 mA
Maximum power dissipation in5.5 W
Network frequency limits47...63 Hz
Response time4.9...0.75 ms x line cycle Off-On 7.3...12.3 ms On-Off
Relative humidity95 % without condensation

All specifications

140DAI54000 additional specifications
ParameterValue
Operating altitude<= 16404.2 ft (5000 m)
StandardsUL 508 CSA C22.2 No 142
MarkingCE
CategoryUS1PC2118155
Module formatStandard
Software nameConcept ProWORX 32 Unity Pro
Input impedance12000 Ohm capacitive 57...63 Hz 14400 Ohm capacitive 47...53 Hz
Local signalling1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 16 LEDs (green) for input status
Group of channels16
Discrete input number16
Absolute maximum input132 V continuous 156 V 10 s 200 V 1 cycle
Addressing requirement1 input word
Isolation between channels1780 Vrms for 1 minute
Isolation between channels and bus1780 Vrms for 1 minute
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Resistance to electromagnetic fields9.1 V/m (10 V/m) 80...2000 MHz IEC 801-3
Ambient air temperature for operation32...140 °F (0...60 °C)
Resistance to electrostatic discharge4 kV contact IEC 801-2 8 kV on air IEC 801-2

Product details

Overview

The 140DAI54000 is a 16-point 115 VAC discrete input module for the Schneider Modicon Quantum automation platform, drawing 5.5 W from the backplane and presenting a 12 kΩ input impedance with a 4.9 ms response time. Each input accepts 115 VAC nominal, with an absolute maximum of 132 V continuous and surge tolerance to 200 V for one cycle. The module occupies one or two input words in the I/O map and is addressed via Unity Pro, Concept, or ProWORX 32.

Schneider lists the 140DAI54000 as discontinued as of 2030-12-31.

MPN
140DAI54000
