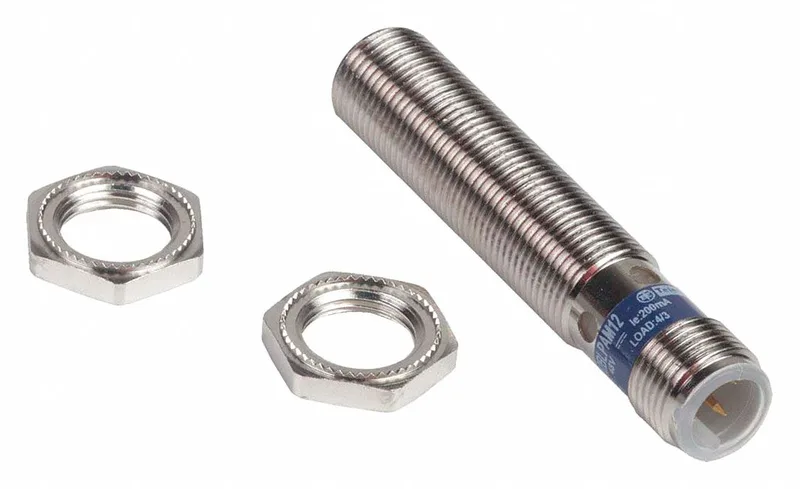

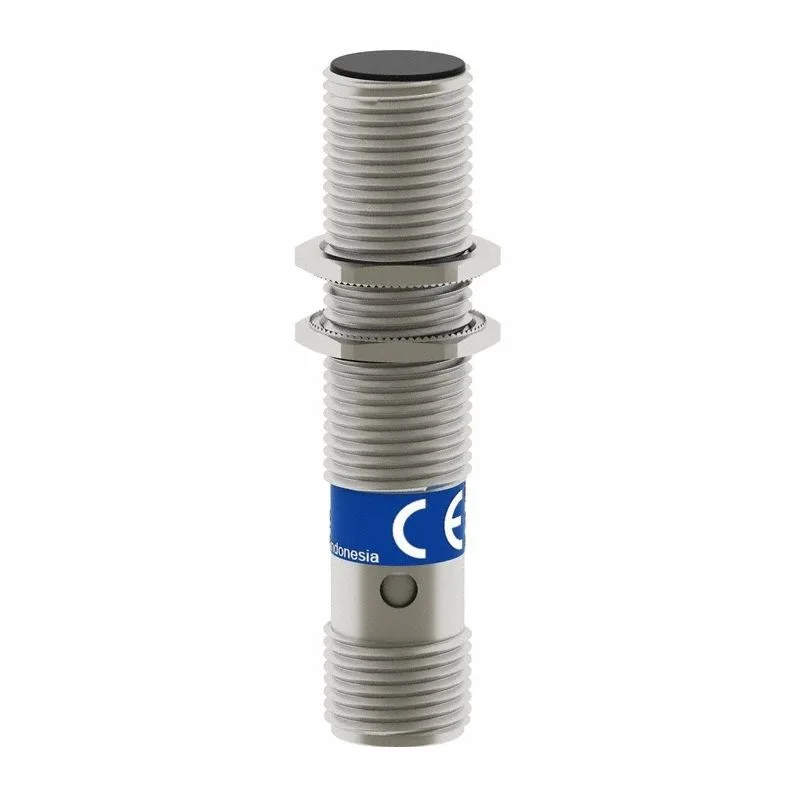

The XS512BLPAM12: This is a shielded cylindrical inductive proximity sensor from Telemecanique’s XS5 series, built with a brass body and nickel-plated finish. Its 2 mm sensing range (shielded) is suited for flush mounting in metal targets, while the IP67 and IP69K ratings let it survive high-pressure washdown environments. Ratings are straight from the evidence: PNP normally-open output, three wires, 12–48 VDC supply, max load 200 mA. The M12 connector (4-pin) simplifies field wiring and allows quick swap without opening the panel. Internal protections for overload, reverse polarity, and short circuit are included on the sensor, which means one less external fuse in many control schemes.
Telemecanique XS512BLPAM12 Inductive Sensor, M12, PNP, 2mm,
MPNXS512BLPAM12
Telemecanique XS5 series, XS512BLPAM12, Inductive Cylindrical Proximity Sensor, M12 threaded, shielded, 4-pin M12 connector, PNP NO output, 2 mm sensing distance, IP67/IP69K.
$15.24Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | XS5 |
| Parameter | Value |
|---|---|
| Sensing distance, max. (alt.) | 2 mm |
| Sensing method | Inductive |
| Sensing-face shielding | Shielded |
| Parameter | Value |
|---|---|
| Supply voltage | Not Rated ; 12-48V DC |
| AC supply voltage rating | Not Rated |
| DC supply voltage rating | 12-48V DC |
| Number of wires | 3 |
| Electrical connection | M12 |
| Electrical installation type | Direct Connector |
| Parameter | Value |
|---|---|
| Output circuit contact form | NO |
| Output circuit type | PNP |
| Includes indicator lights | Indicator Lights Included |
| Output circuit | PNP |
| Parameter | Value |
|---|---|
| Body style | Cylindrical |
| Overall height | 62 mm |
| Body material | Brass |
| Parameter | Value |
|---|---|
| Operating temperature, max. (alt.) | 158 °F |
| Operating temperature, min. (alt.) | -13 °F |
| IP rating | IP67; IP69K |
| Parameter | Value |
|---|---|
| Standards / certifications | CE; CSA; RoHS; UL Listed |
Product details
Frequently asked questions
What is the XS512BLPAM12 series?
It belongs to the Telemecanique XS5 series of cylindrical inductive proximity sensors.
What built-in protections does this sensor have?
Overload protection, reverse polarity protection, and short circuit protection are integrated into the sensor body.
Can XS512BLPAM12 replace XS9E11RPBL01M12 in an existing panel?
No – the XS9 is a rectangular plastic sensor with a 10 mm unshielded sensing range, NC output, and a different mounting footprint. The XS5 is cylindrical shielded with a 2 mm range and NO output. A change request and mechanical adapter would be required.
