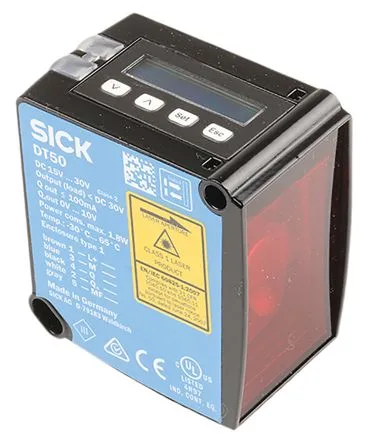

SICK DT50-P1123 Dx50 Distance Sensor, Red Laser, 10 m, PNP
SICK Dx50 series optical distance sensor, DT50-P1123, red laser, 10 m range, PNP output, 20 ms response, IP65, M12 5-pin connector.
Specifications
| Parameter | Value |
|---|---|
| Series | Dx50 |
| Parameter | Value |
|---|---|
| Sensing distance, max. | 10 m |
| Parameter | Value |
|---|---|
| Operating voltage, max. | 30 VDC |
| Operating voltage, min. | 10 VDC |
| Termination type | Connector, M12, 5-Pin, Male |
| Parameter | Value |
|---|---|
| Length | 58 mm |
| Parameter | Value |
|---|---|
| Operating temperature, max. | 140 °C |
| Operating temperature, min. | -30 °C |
| IP protection rating | IP65 |
| Parameter | Value |
|---|---|
| Width | 36 mm |
| Height | 63 mm |
| Light type | Red Laser |
| Sensor type | Distance Sensor |
| Response time | 20 ms |
| Sensing distance min. | 200 mm |
| Optical sensor output type | PNP |
Product details
Frequently asked questions
Will DT50-P1123 drop into a panel specified around DS50-P1112 without rewiring?
The DS50-P1112 shares the same Dx50 housing dimensions (36 x 63 x 58 mm), same M12 5-pin connector, same 10 m range, and same 10–30 VDC supply. The key difference is response time: the DS50-P1112 responds in 10 ms versus 20 ms for the DT50-P1123, and it offers dual PNP outputs instead of single. Mechanically it's a direct swap; electrically, check whether your PLC input expects one or two PNP signals.
The SICK DT50-P1123 is a Dx50-series optical distance sensor that uses a red laser to measure from 200 mm out to 10 m with a 20 ms response time. That 10 m range covers long conveyor or crane-approach zones where you need a single sensor, not a daisy chain. The PNP output (30 VDC supply max, 10 VDC min) mates directly to standard PLC inputs without a level shifter.
The 36 mm width and 63 mm height (58 mm length) fit the Dx50 housing footprint common on SICK brackets — if you're swapping a failed unit on an existing mount, the bolt pattern matches. The M12 5-pin male connector is standard for industrial sensors, so replacement cables are off-the-shelf. Operating temperature spans -30 °C to 140 °C, which covers both freezer-line and oven-adjacent installations. The 20 ms response is adequate for material handling at moderate line speeds — think box detection at 1–2 m/s — but not for high-speed pick-and-place where you'd need sub-millisecond response.
