SICK IME08-04NPSZT0S — Proximity Sensors

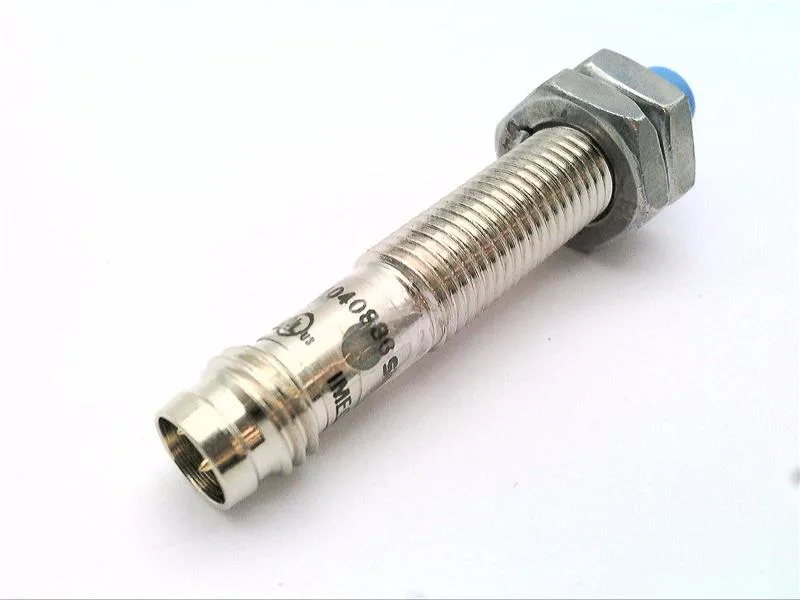

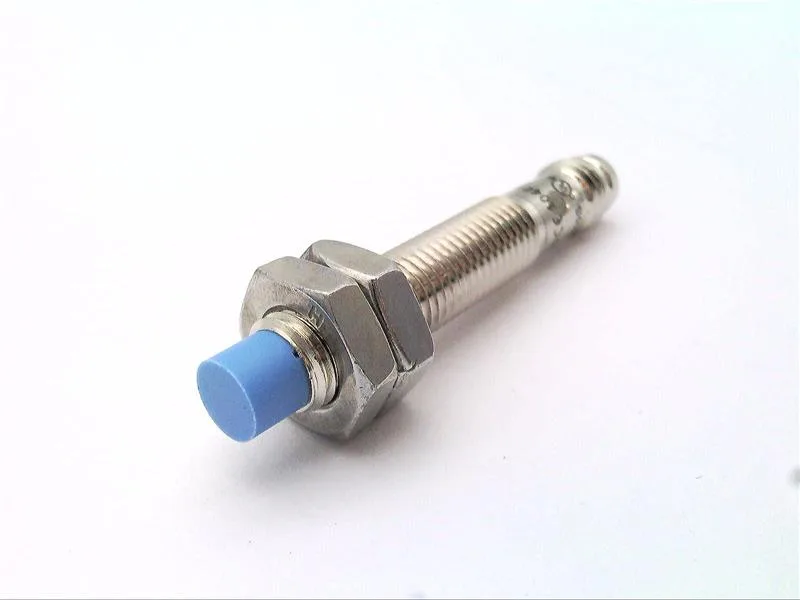

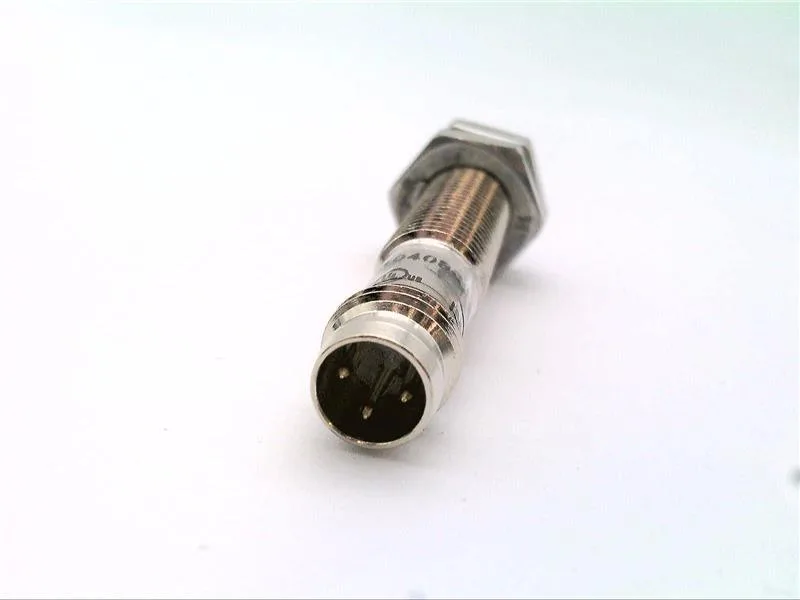

SICK IME08-04NPSZT0S

MPNIME08-04NPSZT0S

Inductive Sensor PNP, Make Contact (NO) 4kHz 30V 10mA 4mm Connector, M8, 3-Pin IP67 IME

$31.75 – $40.14Ref. price · indicative, final on quote
SICK IME08-04NPSZT0S datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

IME08-04NPSZT0S — Identification
ParameterValue
SeriesIME
IME08-04NPSZT0S — Sensing
ParameterValue
Sensing distance, max.4 mm
IME08-04NPSZT0S — Electrical
ParameterValue
Operating voltage, max.30 V
Operating voltage, min.10 V
Termination typeConnector, M8, 3-Pin
IME08-04NPSZT0S — Output
ParameterValue
Switching frequency4 kHz
Load current200 mA
IME08-04NPSZT0S — Mechanical
ParameterValue
Mounting typeNon Flush Mount
Length50 mm
Housing materialMetal;Nickel Plated Brass
IME08-04NPSZT0S — Environmental
ParameterValue
Operating temperature, max.75 °C
Operating temperature, min.-25 °C
IP protection ratingIP67
IME08-04NPSZT0S — Other specifications
ParameterValue
Construction formM8
Current consumption10 mA
Repeat accuracy (%)2 %
Inductive sensor output typePNP, Make Contact (NO)
MPN
IME08-04NPSZT0S
