SICK IME08-04NPSZW2S
MPNIME08-04NPSZW2S

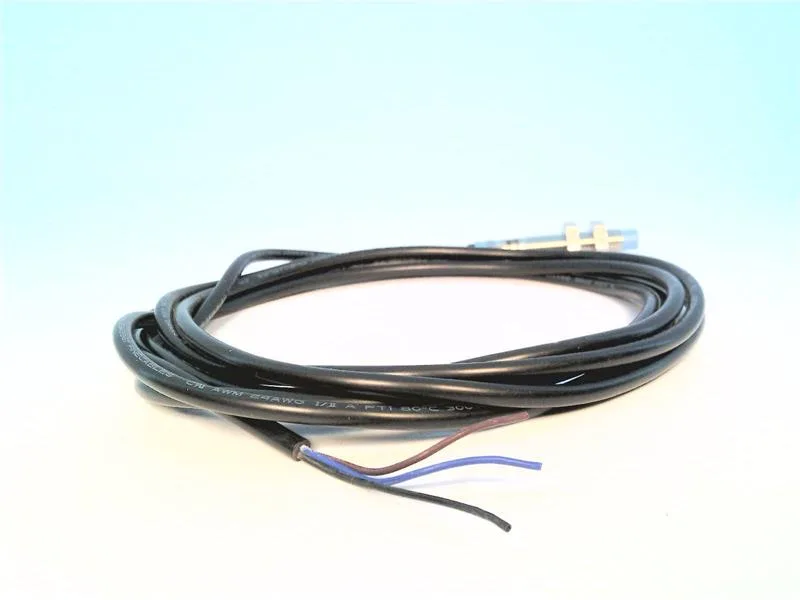

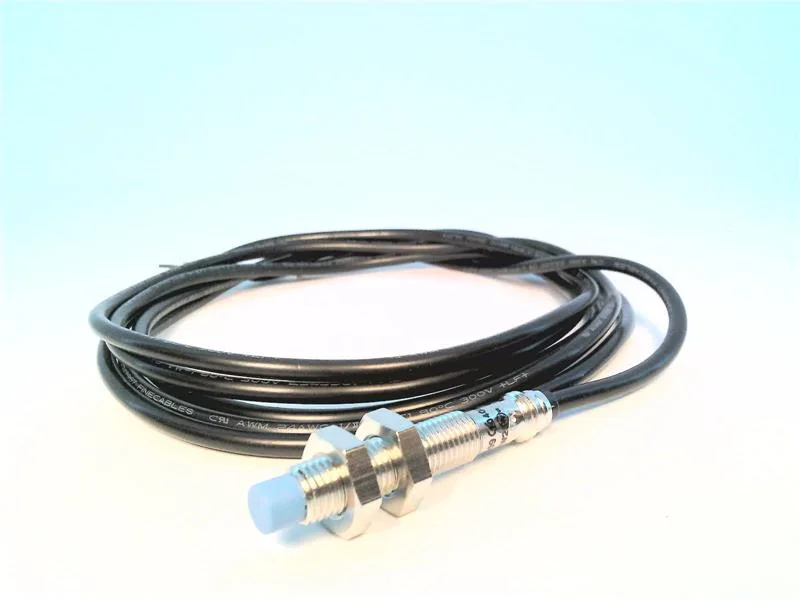

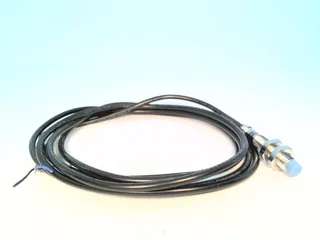

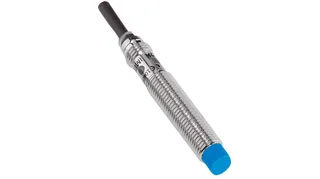

Inductive Sensor PNP, Make Contact (NO) 4kHz 30V 10mA 4mm IP67 Cable, 2 m IME
$31.75 – $36.16Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | IME |
| Parameter | Value |
|---|---|
| Sensing distance, max. | 4 mm |
| Parameter | Value |
|---|---|
| Operating voltage, max. | 30 V |
| Operating voltage, min. | 10 V |
| Termination type | Cable, 2 m |
| Parameter | Value |
|---|---|
| Switching frequency | 4 kHz |
| Load current | 200 mA |
| Parameter | Value |
|---|---|
| Mounting type | Non Flush Mount |
| Length | 52 mm |
| Housing material | Brass Nickel Plated |
| Parameter | Value |
|---|---|
| Operating temperature, max. | 75 °C |
| Operating temperature, min. | -25 °C |
| IP protection rating | IP67 |
| Parameter | Value |
|---|---|
| Construction form | M8 |
| Current consumption | 10 mA |
| Repeat accuracy (%) | 2 % |
| Inductive sensor output type | PNP, Make Contact (NO) |
MPN
IME08-04NPSZW2S
