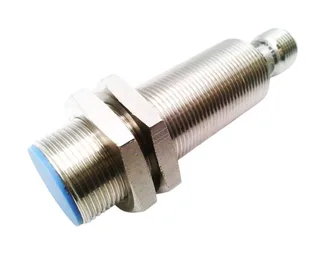

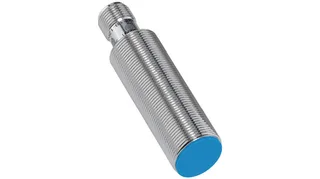

SICK IME18-08BPSZC0S — Proximity Sensors

SICK IME18-08BPSZC0S

MPNIME18-08BPSZC0S

Inductive Sensor PNP, Make Contact (NO) 1kHz 30V 10mA 8mm Connector, M12, 4-Pin, Male IP67 IME

$20.32 – $38.45Ref. price · indicative, final on quote
SICK IME18-08BPSZC0S datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

IME18-08BPSZC0S — Identification
ParameterValue
SeriesIME
IME18-08BPSZC0S — Sensing
ParameterValue
Sensing distance, max.8 mm
IME18-08BPSZC0S — Electrical
ParameterValue
Operating voltage, max.30 V
Operating voltage, min.10 V
Termination typeConnector, M12, 4-Pin, Male
IME18-08BPSZC0S — Output
ParameterValue
Switching frequency1 kHz
Load current200 mA
IME18-08BPSZC0S — Mechanical
ParameterValue
Mounting typeFlush Mount
Length69 mm
Housing materialMetal;Nickel Plated Brass
IME18-08BPSZC0S — Environmental
ParameterValue
Operating temperature, max.75 °C
Operating temperature, min.-25 °C
IP protection ratingIP67
IME18-08BPSZC0S — Other specifications
ParameterValue
Construction formM18
Current consumption10 mA
Repeat accuracy (%)2 %
Inductive sensor output typePNP, Make Contact (NO)
MPN
IME18-08BPSZC0S
