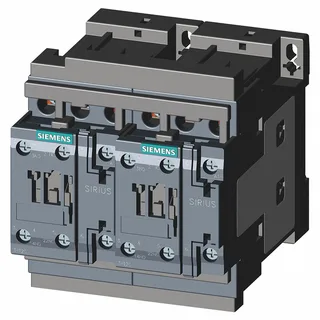

Siemens 3RA2325-8XB30-1AP6 motor starter
MPN3RA2325-8XB30-1AP6
Active
reversing contactor assembly, AC-3e/AC-3, 17 A, 7.5 kW / 400 V, 3-pole, 220 V AC, 50 Hz / 240 V, 60 Hz, screw terminal, electrical and mechanical interlock, auxiliary contacts: 2 x 1 NO
$458.63Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Product designation | Reversing contactor assembly |
| Main circuit poles | 3 |
| Brand | SIRIUS |
| Reference designation (IEC 81346-2) | Q |
Ratings & Performance
| Parameter | Value |
|---|---|
| Rated motor power at 400 V | 7.5 kW |
| Rated motor power at 460/480 V (hp) | 10 hp |
| Rated motor power at 575/600 V (hp) | 15 hp |
| Rated current at 480 V | 14 A |
| Rated current at 600 V | 17 A |
Contacts & Control
| Parameter | Value |
|---|---|
| Rated voltage range at 50 Hz | 220 V |
| Control supply voltage type | AC |
| Auxiliary switch extension | Yes |
Communication
| Parameter | Value |
|---|---|
| AS-Interface protocol support | No |
Mechanical & Connection
| Parameter | Value |
|---|---|
| Main contact conductor range (AWG) | 2x (16 ... 12), 2x (14 ... 8) |
| Mounting / fastening method | screw and snap-on mounting onto 35 mm standard mounting rail |
| Mounting position | +/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface |
| Width | 90 mm |
| Height | 101 mm |
| Depth | 97 mm |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -55 ... +80 °C |
MPN
3RA2325-8XB30-1AP6
