Siemens 3RT1055-6SF36 — Contactors

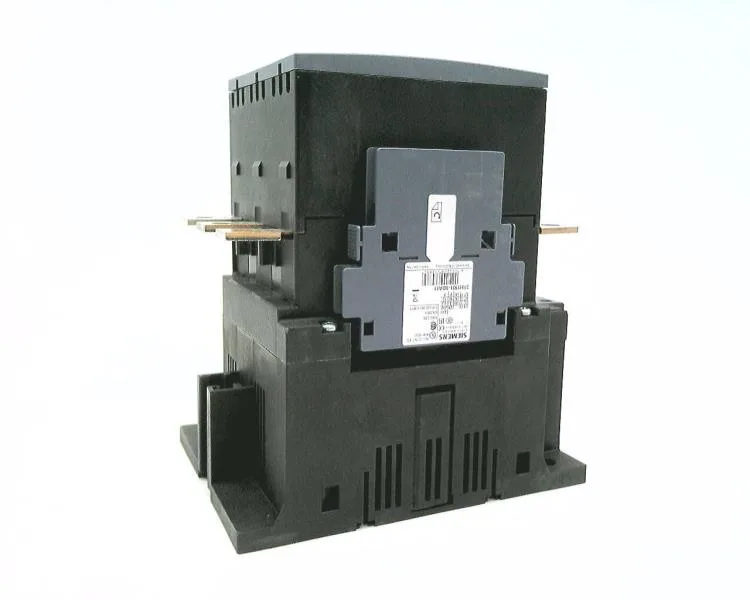

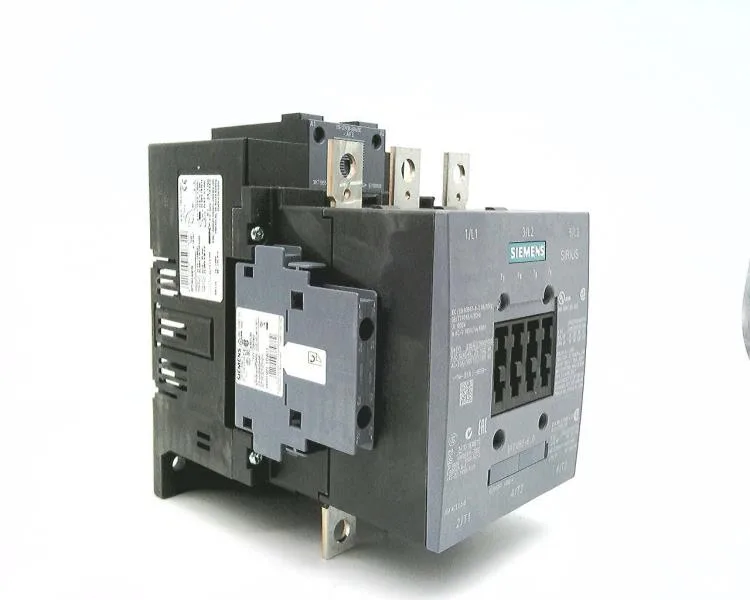

Siemens 3RT1055-6SF36 SIRIUS Power Contactor, AC-3 750 ops/h

MPN3RT1055-6SF36
Active

Siemens SIRIUS power contactor, Size S6, coil 96-127 V AC, screw fixing, auxiliary switch included, MTBF 75 a, AC-3 max 750 ops/h.

$292.10Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RT1055-6SF36 — Identification
ParameterValue
Contactor frame sizeS6
3RT1055-6SF36 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V132 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V30 hp
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT1055-6SF36 — Control & Coil
ParameterValue
Control supply voltage typeAC/DC
Rated value @ 50 Hz0.6
Rated value @ 50 Hz96 ... 127 V
3RT1055-6SF36 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT1055-6SF36 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 355 A (690 V, 100 kA)
Short-circuit coordination type 2, fusegG: 315 A (690 V, 100 kA), aM: 200 A (690 V, 50 kA), BS88: 315 A (415 V, 50 kA)
Aux. switch short-circuit protection, fusegG: 10 A (500 V, 1 kA)
3RT1055-6SF36 — Connection & Mounting
ParameterValue
Main circuit connectionConnection bar
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), max. 2x (0.75 ... 4 mm²)
Conductor cross-section, solid or stranded2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), max. 2x (0,75 ... 4 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew fixing
Side-by-side mountingYes
3RT1055-6SF36 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT1055-6SF36 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT1055-6SF36 — Mechanical
ParameterValue
Width120 mm
Height172 mm
Depth170 mm
3RT1055-6SF36 — Specifications
ParameterValue
At AC115 ... 130 ms

Product details

The auxiliary switch is built in, saving a slot on the rail for a separate block.

AC-4, which handles inching and plugging, is lower at 130 ops/h, so if your application needs frequent reversing, that's the limiting figure. The MTBF of 75 a is a reliability benchmark for the coil and mechanism, not a guarantee of contact life under heavy use — that depends on the load and switching frequency.

Mounting and wiring notes

This contactor uses screw fixing, not a DIN-rail clip, so plan for a drilled backplate or a mounting adapter. Main power wiring accepts stranded conductors from 25 to 120 mm², so it's sized for the heavier feeds typical of a Size S6 contactor. The coil terminals are screw-type, and the auxiliary contacts take 0.5-1.5 mm² solid or stranded.

Frequently asked questions

What is the MTBF of 3RT1055-6SF36?

The listed MTBF is 75 a, which is a reliability benchmark for the coil and mechanism under typical operating conditions.

What are the key ratings of 3RT1055-6SF36?

Key ratings include AC-3 max 750 ops/h, AC-4 max 130 ops/h, coil voltage 96-127 V AC, operating temperature -25 to +60 °C, and an auxiliary switch is included.

Where can I buy 3RT1055-6SF36?

This part is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.

Will 3RT1055-6SF36 drop into a panel wired for 3RT1055-6QF35?

Both are Size S6 SIRIUS contactors with the same footprint and screw-fixing pattern, so mechanical fit is the same. The difference is the coil voltage: 3RT1055-6SF36 uses 96-127 V AC, while 3RT1055-6QF35 uses a different coil. Verify the control voltage before swapping.
