Siemens 3RT1064-6AF36 — Contactors

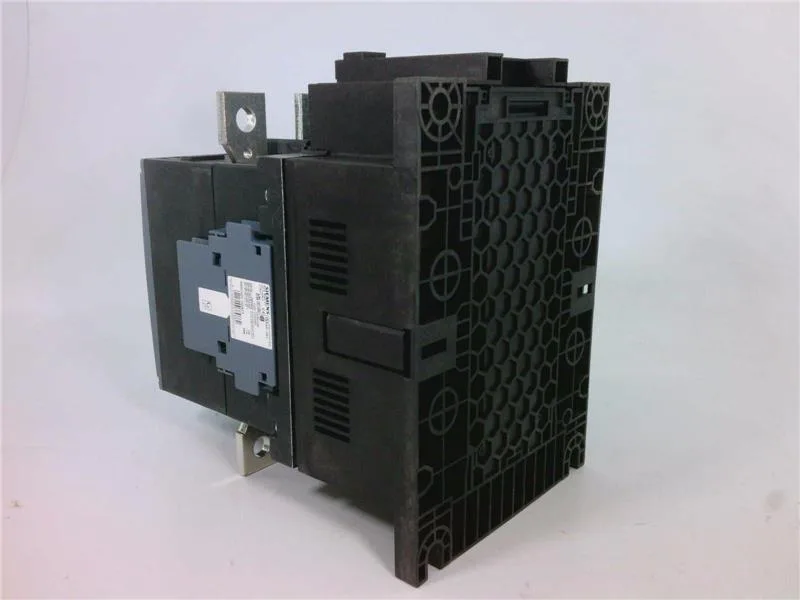

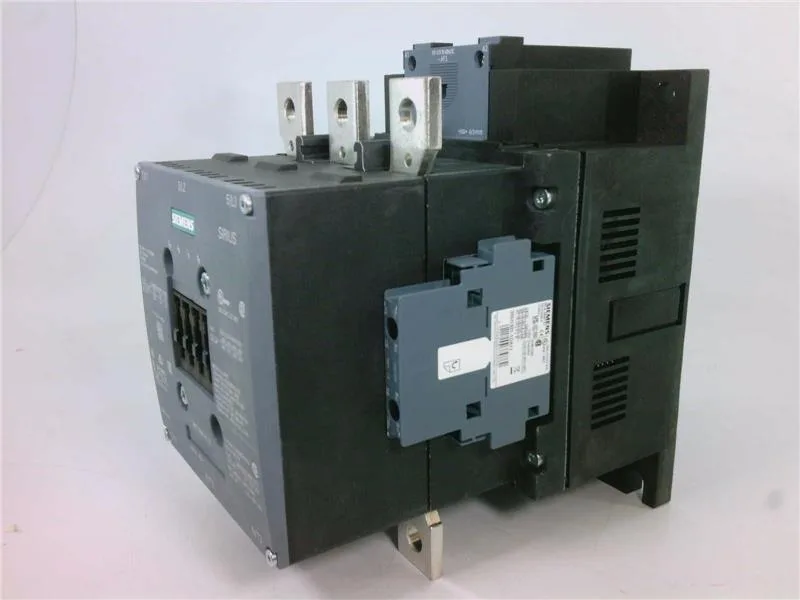

Siemens 3RT1064-6AF36 SIRIUS Power Contactor, S10, 110-127V

MPN3RT1064-6AF36
Active

Siemens SIRIUS, power contactor, size S10, 3RT1064-6AF36, 110-127 V AC coil, screw-type terminals, 210 x 145 x 202 mm.

$532.13Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RT1064-6AF36 — Identification
ParameterValue
Contactor frame sizeS10
3RT1064-6AF36 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V195 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V6 A
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT1064-6AF36 — Control & Coil
ParameterValue
Control supply voltage typeAC/DC
Rated value @ 50 Hz0.9
Rated value @ 50 Hz110 ... 127 V
3RT1064-6AF36 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT1064-6AF36 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusegG: 500 A (690 V, 100 kA)
Short-circuit coordination type 2, fusegG: 400 A (690 V, 100 kA), aM: 315 A (690 V, 50 kA), BS88: 400 A (415 V, 50 kA)
Aux. switch short-circuit protection, fusegG: 10 A (500 V, 1 kA)
3RT1064-6AF36 — Connection & Mounting
ParameterValue
Main circuit connectionConnection bar
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), max. 2x (0.75 ... 4 mm²)
Conductor cross-section, solid or stranded2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), max. 2x (0,75 ... 4 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew fixing
Side-by-side mountingYes
3RT1064-6AF36 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT1064-6AF36 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RT1064-6AF36 — Mechanical
ParameterValue
Width145 mm
Height210 mm
Depth202 mm
3RT1064-6AF36 — Specifications
ParameterValue
At AC40 ... 80 ms

Product details

It carries a 110-127 V AC coil with screw-type terminals, and the main power path accepts stranded cable from 70 up to 240 mm² — sized for the higher-current end of the S10 range. Rated for AC-3 duty (motor switching) at up to 500 operating cycles per hour, and AC-4 (plugging/reversing) at 130 cycles per hour. The 10-15 ms arcing time is typical for a contactor this size; the 40-80 ms operate time on both AC and DC means it coordinates cleanly with upstream short-circuit protection without nuisance tripping. Clearance requirements are tight: 10 mm upward, downward, and to the sides, 20 mm forward — workable in most standard enclosures.

The built-in auxiliary switch is rated 10 A at 24 V, 2 A at 48 V and 60 V, and 1 A at 110 V. That covers typical PLC input and relay coil loads without needing a separate auxiliary contact block for basic applications.

If you are comparing it against the 3RT1264-6AP36-0KA1, note that the 3RT1264 variant uses a different coil voltage and includes an electronic coil interface; the 3RT1064-6AF36 is the straightforward electromechanical version with a conventional AC coil.

Environmental & Mechanical

Frequently asked questions

How do I get current pricing and availability for 3RT1064-6AF36?

Submit an RFQ through this listing — pricing and stock are confirmed at quote time through our independent distribution network.

What is the closest functional second-source to 3RT1064-6AF36?

The 3RT1264-6AP36-0KA1 is a peer in the same S10 frame, but it uses a different coil voltage and includes an electronic coil interface. The 3RT1064-6AF36 is the standard electromechanical version with a 110-127 V AC screw-terminal coil.

What are the key dimensions of 3RT1064-6AF36?

Height 210 mm, width 145 mm, depth 202 mm. Mounting is via a single 11 mm hole with screw fixing.

What wire sizes does the main power circuit accept?

The main power path accepts stranded cable from 70 mm² up to 240 mm². The auxiliary terminals accept 2x (0.5-1.5 mm²) solid or stranded, 2x (0.75-2.5 mm²), or max 2x (0.75-4 mm²).
