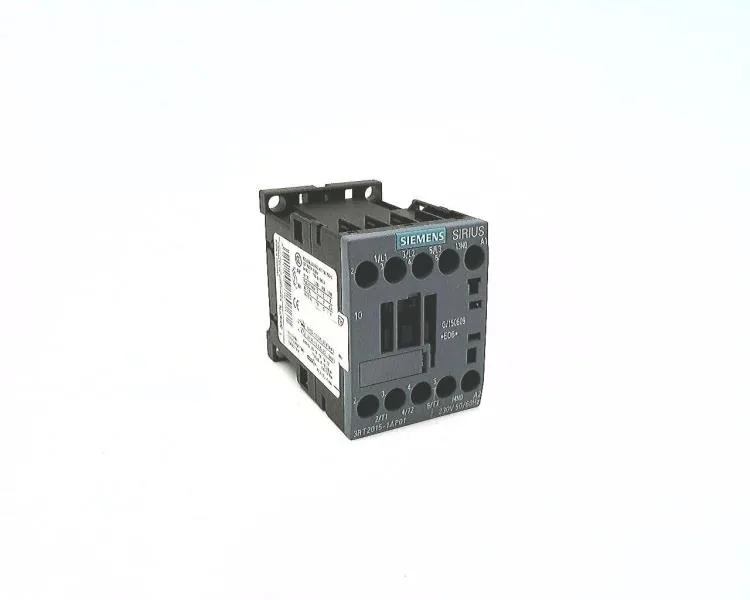

Siemens 3RT2015-1AP01

MPN3RT2015-1AP01

Active

power contactor, AC-3e/AC-3, 7 A, 3 kW / 400 V, 3-pole, 230 V AC, 50/60 Hz, auxiliary contacts: 1 NO, screw terminal, size: S00,

$16.51Ref. price · indicative, final on quote

Add to RFQ

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

3RT2015-1AP01 — Identification
Parameter	Value
Contactor frame size	S00

3RT2015-1AP01 — Ratings & Performance
Parameter	Value
Rated operational current, AC-12, max.	10 A
Rated operational current, AC-4 @ 400 V	6.5 A
Rated value @ 400 V	3 A
Rated value @ 500 V	2 A
Rated value @ 690 V	1 A
Rated value @ 230 V	0.75 hp
Rated value @ 24 V	10 A
Rated value @ 60 V	2 A
Rated value @ 110 V	1 A
Rated value @ 220 V	0.3 A

3RT2015-1AP01 — Contacts & Poles
Parameter	Value
Main poles	3
Main NO contacts	3
Auxiliary contact reliability	1 faulty switching per 100 million (17 V, 1 mA)

3RT2015-1AP01 — Protection & Coordination
Parameter	Value
Short-circuit coordination type 1, fuse	gG: 35A (690V,100kA), aM: 20A (690V,100kA), BS88: 35A (415V,80kA)
Short-circuit coordination type 2, fuse	gG: 20A (690V,100kA), aM: 16A (690V, 100kA), BS88: 20A (415V, 80kA)
Aux. switch short-circuit protection, fuse	gG: 10 A (500 V, 1 kA)

3RT2015-1AP01 — Connection & Mounting
Parameter	Value
Main circuit connection	screw-type terminals
Aux. / control circuit connection	screw-type terminals
Conductor cross-section, solid	0.5 ... 4 mm²
Conductor cross-section, solid or stranded	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
Conductor cross-section, finely stranded w/ ferrule	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting method	screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mounting	Yes
