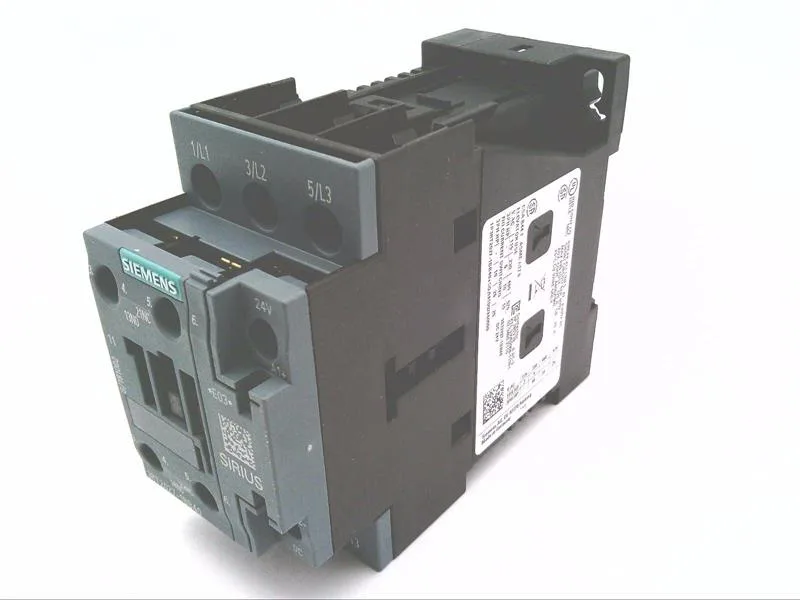

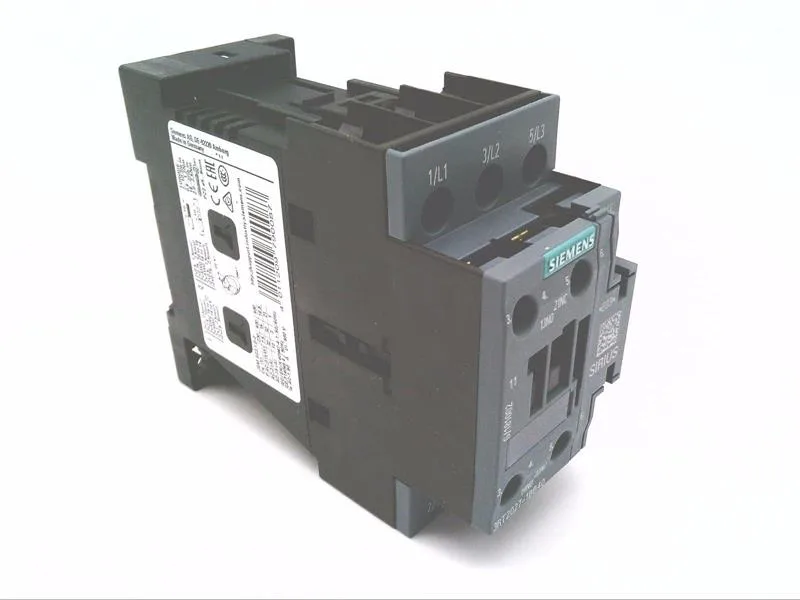

Siemens 3RT2027-1BB40 SIRIUS Power Contactor, 24 V Coil
Siemens SIRIUS 3RT2027-1BB40 power contactor, size S0, 24 V DC coil, screw-type terminals, 45 mm width, 107 mm depth, 10 million mechanical cycles.
Specifications
| Parameter | Value |
|---|---|
| Contactor frame size | S0 |
| Parameter | Value |
|---|---|
| Rated operational current, AC-12, max. | 10 A |
| Rated operational current, AC-4 @ 400 V | 22 A |
| Rated value @ 400 V | 3 A |
| Rated value @ 500 V | 2 A |
| Rated value @ 690 V | 1 A |
| Rated value @ 230 V | 5 hp |
| Rated value @ 24 V | 10 A |
| Rated value @ 60 V | 2 A |
| Rated value @ 110 V | 1 A |
| Rated value @ 220 V | 0.3 A |
| Parameter | Value |
|---|---|
| Control supply voltage type | DC |
| Parameter | Value |
|---|---|
| Main poles | 3 |
| Main NO contacts | 3 |
| Auxiliary contact reliability | 1 faulty switching per 100 million (17 V, 1 mA) |
| Parameter | Value |
|---|---|
| Short-circuit coordination type 1, fuse | gG: 125A (690V,100kA), aM: 50A (690V,100kA), BS88: 125A (415V,80kA) |
| Short-circuit coordination type 2, fuse | gG: 50A (690V,100kA), aM: 25A (690V, 100kA), BS88: 50A (415V, 80kA) |
| Aux. switch short-circuit protection, fuse | gG: 10 A (500 V, 1 kA) |
| Parameter | Value |
|---|---|
| Main circuit connection | screw-type terminals |
| Aux. / control circuit connection | screw-type terminals |
| Conductor cross-section, solid | 1 ... 10 mm² |
| Conductor cross-section, solid or stranded | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Conductor cross-section, finely stranded w/ ferrule | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Mounting method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715 |
| Side-by-side mounting | Yes |
| Parameter | Value |
|---|---|
| Durability (operating cycles, typ.) | 10 000 000 |
| Durability with aux. switch block (cycles, typ.) | 10 000 000 |
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -55 ... +80 °C |
| Installation altitude, max. | 2 000 m |
| Parameter | Value |
|---|---|
| Width | 45 mm |
| Height | 85 mm |
| Depth | 107 mm |
Product details
Panel fit and wiring constraints
The 3RT2027-1BB40: All connections use screw-type terminals, including the coil. Depth is 107 mm, height 85 mm.
Switching duty and mechanical endurance
Rated for 10 million mechanical cycles typical, with maximum operating rates varying by duty: 1,000 ops/h in AC-1 (resistive), 750 ops/h in AC-2 (slip-ring motors) and AC-3 (squirrel-cage motors), and 250 ops/h in AC-4 (plugging/inching). The AC-3e rating also caps at 750 ops/h. The coil is rated 24 V DC, with a pick-up/drop-out time of 15 to 18 ms. Arcing time is 10 ms. The coil's full-scale value is 1.1 and initial value 0.8, indicating the operating voltage tolerance band. Motor rating at 230 V is 5 hp.
