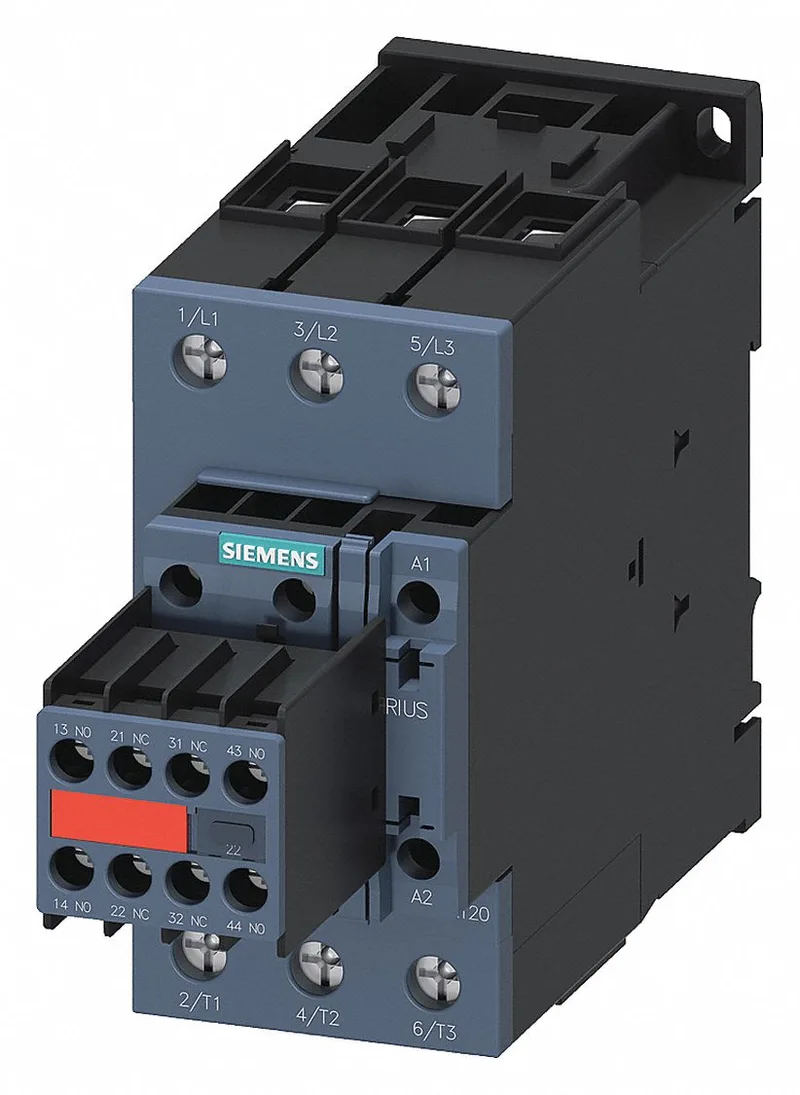

Siemens 3RT2036-1AK64-3MA0 SIRIUS Power Contactor, 52 A
Siemens SIRIUS power contactor, size S2, order code 3RT2036-1AK64-3MA0, 52 A at 480 V, screw-type coil terminals, 55 mm wide.
Specifications
| Parameter | Value |
|---|---|
| Contactor frame size | S2 |
| Parameter | Value |
|---|---|
| Rated operational current, AC-12, max. | 10 A |
| Rated operational current, AC-4 @ 400 V | 41 A |
| Rated value @ 400 V | 3 A |
| Rated value @ 500 V | 2 A |
| Rated value @ 690 V | 1 A |
| Rated value @ 230 V | 10 hp |
| Rated value @ 24 V | 6 A |
| Rated value @ 60 V | 2 A |
| Rated value @ 110 V | 1 A |
| Rated value @ 220 V | 0.3 A |
| Parameter | Value |
|---|---|
| Control supply voltage type | AC |
| Rated value @ 50 Hz | 0.36 |
| Rated value @ 50 Hz | 110 V |
| Parameter | Value |
|---|---|
| Main poles | 3 |
| Main NO contacts | 3 |
| Auxiliary contact reliability | 1 faulty switching per 100 million (17 V, 1 mA) |
| Parameter | Value |
|---|---|
| Short-circuit coordination type 1, fuse | gG: 160 A (690 V, 100 kA), aM: 80 A (690 V, 100 kA), BS88: 125 A (415 V, 80 kA) |
| Short-circuit coordination type 2, fuse | gG: 80A (690V,100kA), aM: 50A (690V,100kA), BS88: 63A (415V,80kA) |
| Aux. switch short-circuit protection, fuse | gG: 10 A (500 V, 1 kA) |
| Parameter | Value |
|---|---|
| Main circuit connection | screw-type terminals |
| Aux. / control circuit connection | screw-type terminals |
| Conductor cross-section, solid or stranded | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Conductor cross-section, finely stranded w/ ferrule | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Mounting method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715 |
| Side-by-side mounting | Yes |
| Parameter | Value |
|---|---|
| Durability (operating cycles, typ.) | 10 000 000 |
| Durability with aux. switch block (cycles, typ.) | 10 000 000 |
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -55 ... +80 °C |
| Installation altitude, max. | 2 000 m |
| Parameter | Value |
|---|---|
| Width | 55 mm |
| Height | 114 mm |
| Depth | 174 mm |
| Parameter | Value |
|---|---|
| At AC | 10 ... 18 ms |
Product details
Frequently asked questions
Will this contactor drop into a panel designed for the 3RT2036-1AK64?
Mechanically yes—same frame size and DIN-rail mounting. But the coil terminal type (screw-type on this variant) may differ from the base version, and this variant has no built-in auxiliary contacts. Verify coil voltage and auxiliary requirements against your panel design.
The 3RT2036-1AK64-3MA0: Ambient operating range is -25 to +60 °C, and the unit mounts on 35 mm DIN rail (screw and snap-on per DIN EN 60715) with the mounting position allowing ±180° rotation on vertical surfaces.
How this variant differs from the base 3RT2036-1AK64
Compared with the base 3RT2036-1AK64 (no suffix), the -3MA0 variant uses screw-type magnet coil terminals rather than push-in or cage-clamp connections. That changes the wiring method but not the panel footprint—both are size S2 with the same 55 mm width, 114 mm height, and 174 mm depth. The base 3RT2036-1AK64 often ships with a standard coil voltage; the -3MA0 variant is sourced specifically with the coil voltage and special markings that match your order. Verify coil voltage from the full order code before substituting.
