Siemens 3SE5000-0AW53
MPN3SE5000-0AW53
Active

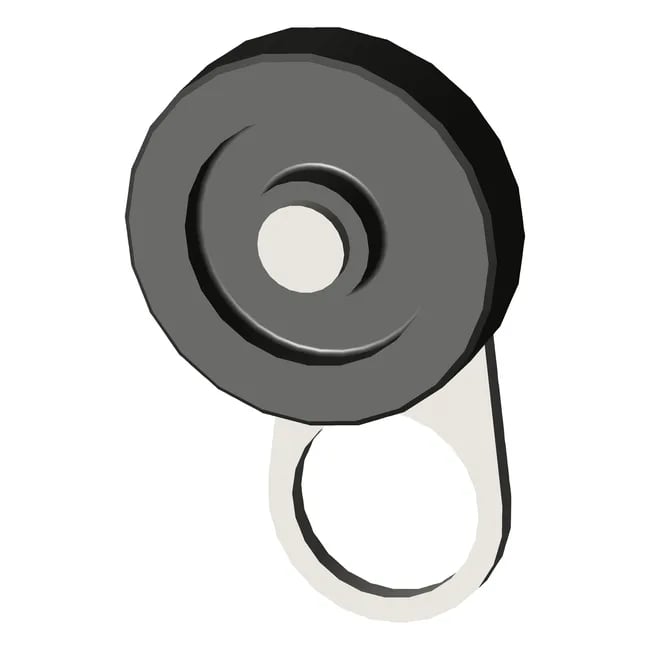

stainless steel actuator with transverse mounting for extreme environmental conditions such as minus 40 degree with increased corrosion protection for safety position switch with tumbler 3SE5312/3SE5322 and AS-i 3SF13 und safety position switch with separate actuator without tumbler 3SE51/3SE52 and AS-i, 3SF11/12
$20.32Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting position | any |
| According to IEC 60068-2-6 | 0.35 mm/5g |
| According to IEC 60068-2-27 | 30g / 11 ms |
| Reference code according to IEC 81346-2 | T |
| During storage | -40 ... +90 °C |
| Sensing distance | mechanical |
| During operation | -40 ... +85 °C |
| Mounting | screw fixing |
| Substance prohibitance | 07/01/2006 |
| Design of the actuating element | Actuator with transverse attachment, stainless steel |
| Mechanical service life (Switching cycles) typical | 1 000 000 |
MPN
3SE5000-0AW53
