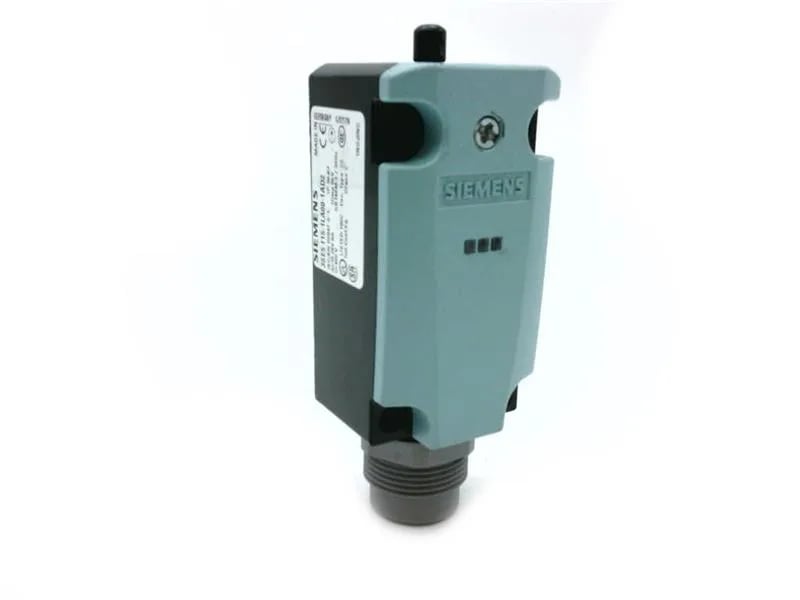

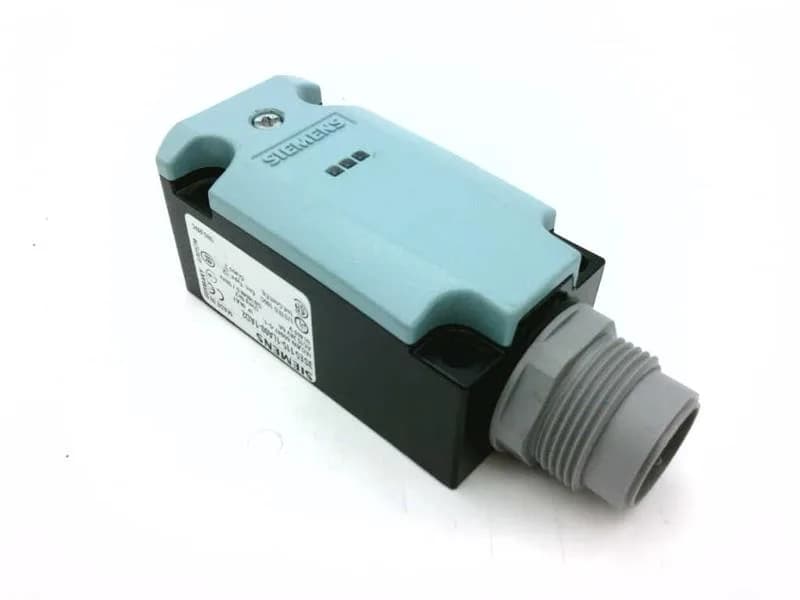

Siemens 3SE5115-1LA00-1AD2
MPN3SE5115-1LA00-1AD2
Basic switch for position switch 3SE51 Metal enclosure 40 mm according to EN 50041 with connector 6+PE according to EN 43651 with 2 LEDs, yellow/green 24 V DC 2 NC quick action contacts without actuator head and 1 NO for LED display Pin assignment: Pin1=21, Pin2=22 Pin3=31, Pin4=32, Pin5=13 LED green, Pin6=ground LED PE connected
$105.41Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Cable entry type | plug, 6-pole + PU, according to EN 43651 |
| Type of electrical connection | plug, 6-pole + PU, according to EN 43651 |
| Type of voltage of the supply voltage of the optional LED display | DC |
| Insulation voltage rated value | 250 V |
| Surge voltage resistance rated value | 0.8 kV |
| Thermal current | 10 A |
| Continuous current of the DIAZED fuse link gG | 6 A |
| Continuous current of the c characteristic MCB | 1 A; for a short-circuit current smaller than 400 A |
| Continuous current of the quick DIAZED fuse link | 10 A; for a short-circuit current smaller than 400 A |
| Coating of the enclosure | cathodic dip coating |
| Material of the enclosure | metal |
| Design of the interface | without |
All specifications
| Parameter | Value |
|---|---|
| Design of the interface for Safety-Related communication | without |
| Mounting position | any |
| Design of Plug-In connection | plug, 6-pole + PU: Pin 1 = terminal 21, Pin 2 = 22, Pin 3 = 31, Pin 4 = 32, Pin 5 = not assigned, Pin 6 = not assigned, PU connected |
| Vibration resistance according to IEC 60068-2-6 | 0.35 mm/5g |
| Width of the sensor | 40 mm |
| Design of the housing | block, narrow |
| Design of the housing according to standard | Yes |
| According to IEC 60068-2-27 | 30g / 11 ms |
| Reference code according to IEC 81346-2 | B |
| Of LED | 24 V |
| During storage | -40 ... +90 °C |
| Repeat accuracy | 0.05 mm |
| Sensing distance | mechanical |
| During operation | -25 ... +60 °C |
| Mounting | screw fixing |
| Circuit principle | snap-action contacts |
| Degree of pollution | class 3 |
| Protection class IP | IP66/IP67 |
| Length of the sensor | 111.7 mm |
| Substance prohibitance | 07/01/2006 |
| Design of the actuating element | Other, without, basic switch with plug |
| Design of the switching contact | mechanical |
| Design of the switching function | Positive opening with appropriate positive opening actuator head |
| Product function positive opening | Yes |
| Suitability for use safety switch | Yes |
| Of the supplied switching contacts | 3SE5000-0LA00 |
| Number of switching contacts Safety-Related | 2 |
| Number of NC contacts for auxiliary contacts | 2 |
| Number of NO contacts for auxiliary contacts | 1 |
| Mechanical service life (Operating cycles) typical | 15 000 000 |
| Minimum actuating force in directions of actuation | 20 N |
| At 24 V rated value | 3 A |
