Siemens 3SE5232-0BK50
MPN3SE5232-0BK50
Active

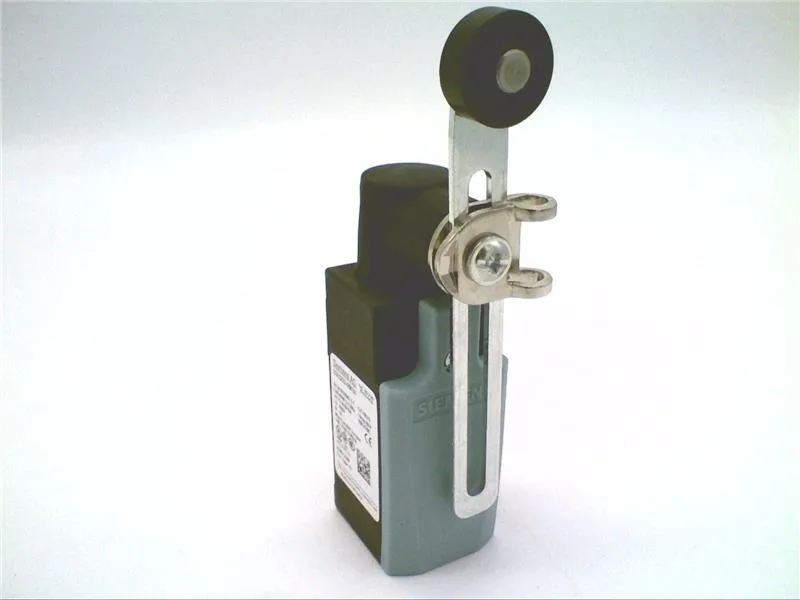

Position switch Plastic enclosure according to EN 50047, 31 mm Device connection 1 x (M20 x 1.5) 1 NO/1 NC slow-action contacts adjustable-length twist lever right/left adjustable with plastic roller 19 mm
$24.13Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Cable entry type | 1x (M20 x 1.5) |
| Type of electrical connection | screw-type terminals |
| Insulation voltage rated value | 400 V |
| Surge voltage resistance rated value | 6 kV |
| Thermal current | 10 A |
| Continuous current of the DIAZED fuse link gG | 6 A |
| Continuous current of the c characteristic MCB | 1 A; for a short-circuit current smaller than 400 A |
| Continuous current of the quick DIAZED fuse link | 10 A; for a short-circuit current smaller than 400 A |
| Operating frequency rated value | 50 ... 60 Hz |
| Coating of the enclosure | Other types |
| Material of the enclosure | plastic |
| Of the supplied empty enclosure with cover | 3SE5232-0AC05 |
| Parameter | Value |
|---|---|
| At 24 V rated value | 3 A |
| At 120 V rated value | 6 A |
| At 125 V rated value | 0.55 A |
| At 240 V rated value | 6 A |
| At 250 V rated value | 0.27 A |
| At 400 V rated value | 0.12 A |
All specifications
| Parameter | Value |
|---|---|
| Material of the enclosure of the switch head | plastic |
| Design of the interface | without |
| Design of the interface for Safety-Related communication | without |
| Mounting position | any |
| For AWG cables solid | 1x (20 ... 16), 2x (20 ... 18) |
| For AWG cables stranded | 1x (20 ... 16), 2x (20 ... 18) |
| Width of the sensor | 31 mm |
| Design of the housing | block, narrow |
| Design of the housing according to standard | Yes |
| According to IEC 60068-2-6 | 0.35 mm/5g |
| According to IEC 60068-2-27 | 30g / 11 ms |
| Standard-Compliant actuator head | EN 50047, design A |
| Reference code according to IEC 81346-2 | B |
| Solid | 1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²) |
| During storage | -40 ... +90 °C |
| Repeat accuracy | 0.05 mm |
| Sensing distance | mechanical |
| During operation | -25 ... +85 °C |
| Mounting | screw fixing |
| Circuit principle | slow-action contacts |
| Degree of pollution | class 3 |
| Protection class IP | IP65 |
| Length of the sensor | 182 mm |
| Shape of the switch head | roller |
| Substance prohibitance | 07/01/2006 |
| Design of the actuating element | Adjustable twist lever, adjustable-length metal lever, 100 mm long, plastic roller 19 mm |
| Design of the switching contact | mechanical |
| Of the supplied operating lever | 3SE5000-0AA50 |
| Product function positive opening | No |
| Suitability for use safety switch | No |
| Of the supplied switching contacts | 3SE5000-0BA00 |
| Finely stranded with core end processing | 1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²) |
| Number of switching contacts Safety-Related | 0 |
| Number of NC contacts for auxiliary contacts | 1 |
| Number of NO contacts for auxiliary contacts | 1 |
| Mechanical service life (Operating cycles) typical | 15 000 000 |
| Minimum actuating torque in directions of actuation | 0.25 N·m |
| Of the supplied actuator head for position switches | 3SE5000-0AK00 |
