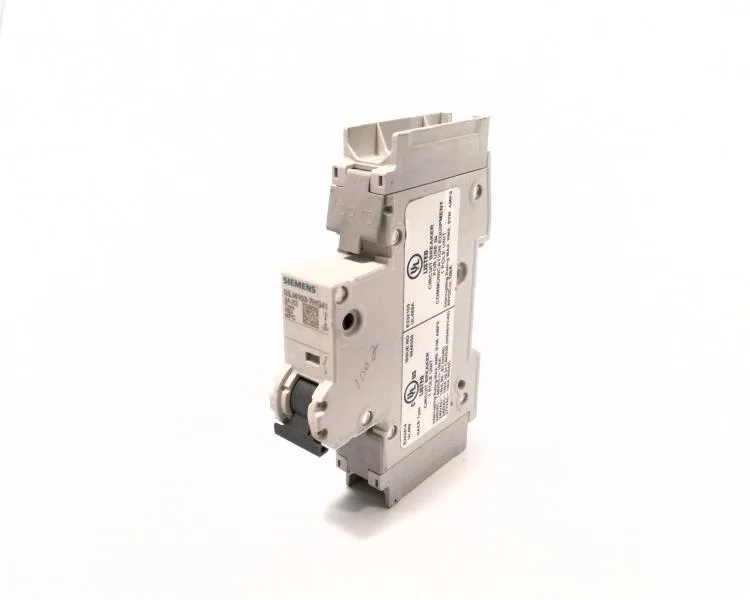

Its 18 mm width (1 MW) fits a single modular slot in any distribution board or control panel. Mounting position is unrestricted — install it horizontally or vertically as the cabinet layout demands. Terminals are combined (screw + clamp) top and bottom, accepting Cu conductors at a tightening torque of 3.5 Nm. No tunnel terminals — the combined design suits both solid and stranded wire without ferrules. IP20 with connected conductors;
Breaking capacity and trip curve
Rated at 400 V AC and 60 V DC maximum. The DC rating is limited to 60 V, so for 110 V DC or 220 V DC battery banks you need a different breaker. Insulation voltage (Ui) is 440 V AC — the breaker is insulated for 440 V line-to-line but its switching duty is capped at 400 V AC. Supply frequency is 50 Hz. No 60 Hz rating is listed — if your installation runs on 60 Hz, confirm thermal performance with the manufacturer. Ambient humidity tolerance is 95% max, non-condensing.
Environmental and mechanical specs
Vibration resistance is rated at 50 m/s² over 25–150 Hz and 60 m/s² at 35 Hz (4 sec) — sufficient for machine-mounted panels near rotating equipment. The breaker is suitable for mechanical engineering and industry applications per the manufacturer's own classification. EMC environment B (immunity not applicable) means it is intended for industrial premises where conducted and radiated interference levels are controlled by the installation.
