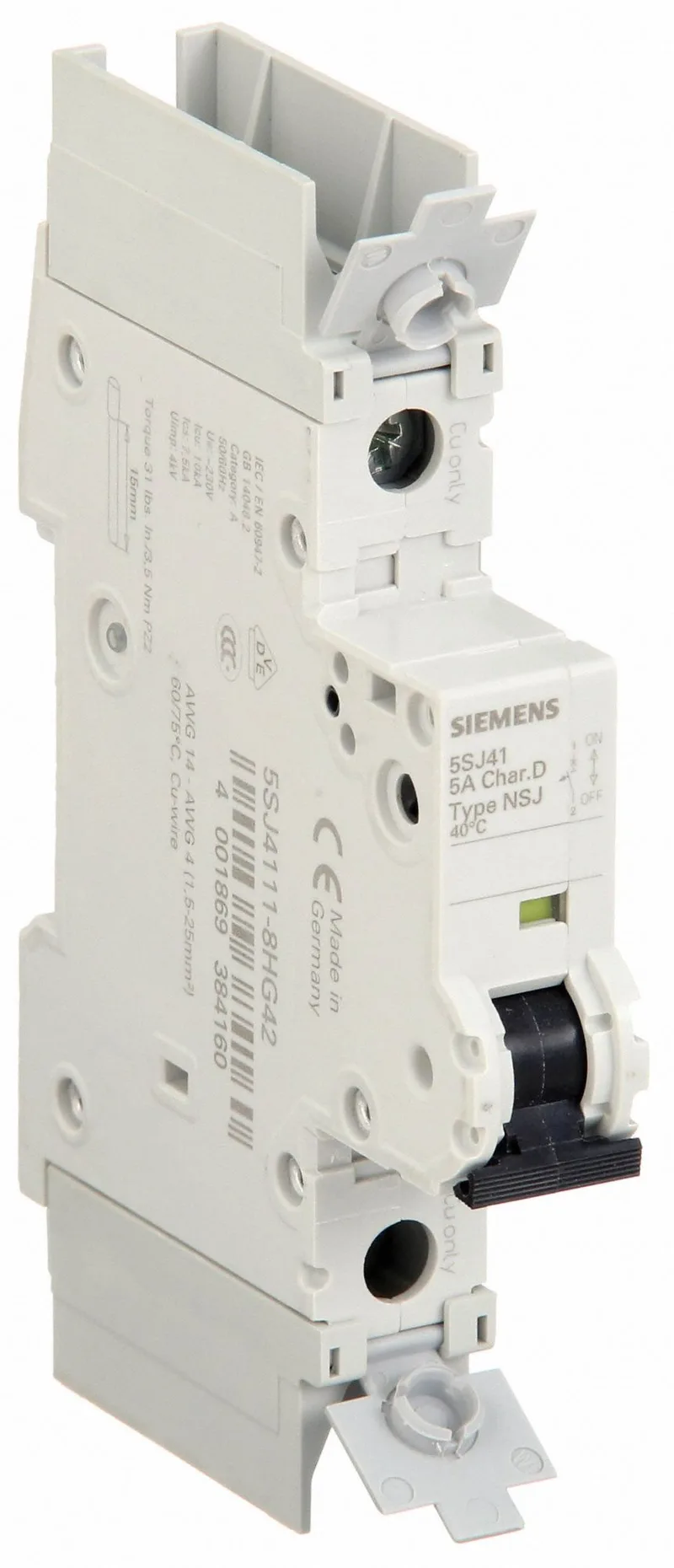

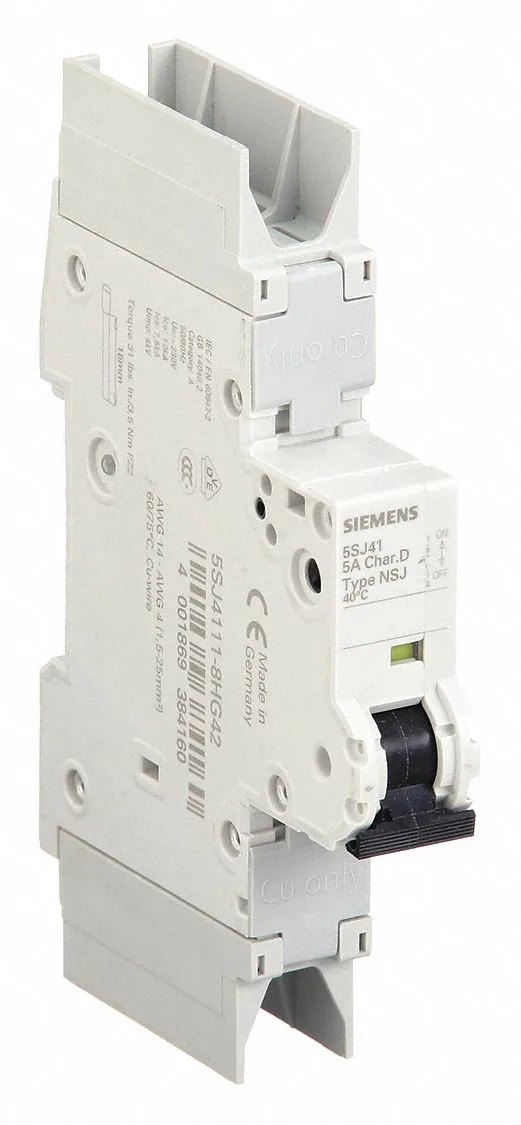

It's designed for mechanical engineering and industry applications, fitting a standard 18 mm modular width on DIN rail.
The D-curve (tripping characteristic D) means this breaker is built for high inrush loads — motors, transformers, welding equipment — where the magnetic trip kicks in at 10–20 times rated current. At 5 A, that's a magnetic trip threshold between 50 and 100 A, so it won't nuisance-trip on a motor start but clears a hard short fast. Temperature derating is published: it holds 5 A up to 40 °C, then drops to 4.9 A at 45 °C, 4.8 A at 50 °C, 4.6 A at 55 °C, and 4.5 A at 60 °C. DC rating is 60 V maximum — fine for control-circuit protection on a 48 VDC bus or a 24 VDC power supply, but not for a 125 VDC battery bank.
IP20 with conductors connected, IP40 in the handle area — fine for enclosed panels, not for washdown zones. Vibration resistance is specified at 50 m/s² (25–150 Hz) and 60 m/s² at 35 Hz, so it holds up on a machine frame or near a motor.
