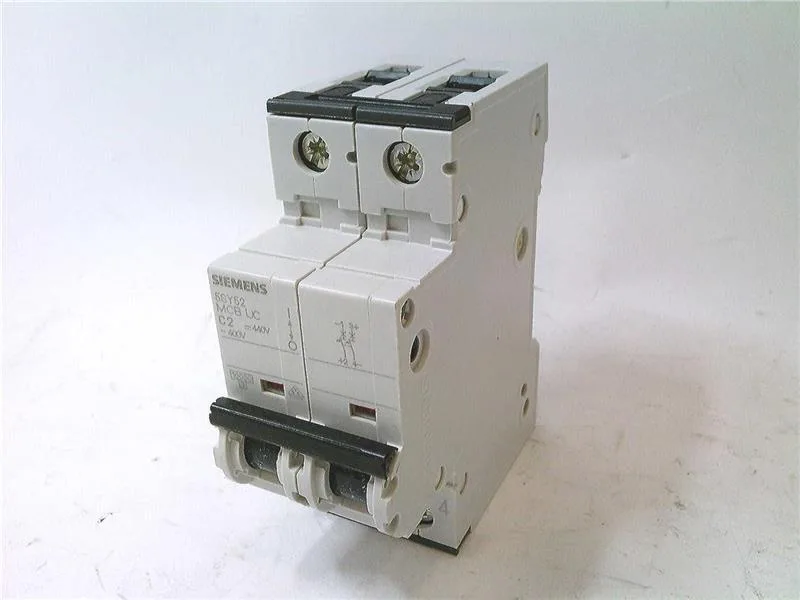

Siemens 5SY5202-7 — 2-Pole MCB (DIN Rail)

Siemens 5SY5202-7 SENTRON MCB, 2-Pole C-Curve, 10 kA

MPN5SY5202-7
Active

Siemens SENTRON 5SY5202-7, 2-pole miniature circuit breaker, C-curve, 10 kA breaking capacity, 400 V AC / 440 V DC, IP20.

$36.83Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SY5202-7 — Identification
ParameterValue
Product designationMiniature circuit breaker
Brand nameSENTRON
Application environmentuniversal current
5SY5202-7 — Electrical
ParameterValue
Number of poles2
5SY5202-7 — Protection
ParameterValue
Tripping characteristic classC
Overvoltage categoryIII
5SY5202-7 — Mechanical
ParameterValue
Modular width units2
Width36 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Mounting positionany
Min.-40 °C
Max.75 °C
Protection degree (IP)IP20, with connected conductors
5SY5202-7 — Environmental
ParameterValue
Pollution degree3
5SY5202-7 — Specifications
ParameterValue
At AC rated value400 V
According to EN 60898 rated value10 kA
With single-phase operation at AC rated value440 V
Energy Limitation Class3

Product details

It's a C-curve device rated for universal current — AC or DC — so it handles both line and DC loads in the same panel.

Two-pole design means it switches both line and neutral — but the evidence notes neutral conductor switching is not enabled, so treat it as a switched-line, solid-neutral device unless the wiring plan says otherwise. That covers most outdoor cabinets in northern climates and hot machinery sheds. Vibration resistance per IEC 60068-2-6 (±1 mm at 5–25 Hz, 50 m/s² at 25–150 Hz) means it won't rattle loose on a conveyor line or near a compressor.

Frequently asked questions

What is the breaking capacity of 5SY5202-7?

10 kA per IEC/EN 60898-2, and 15 kA per IEC 60947-2 on DC circuits.

What compliance documentation does this breaker carry?

It's certified to IEC/EN 60898-2 and UL1077, halogen-free and silicon-free. The SENTRON series typically provides RoHS and REACH declarations on request.

Will 5SY5202-7 drop into a panel specified around 5SY5240-7?

Both are 2-pole SENTRON MCBs with the same 36 mm width and DIN-rail mounting, so the footprint and wiring layout are identical. The difference is the current rating — 5SY5240-7 is a higher-amperage variant. If the panel's bus bars and cable sizing support that ampacity, the swap is a straight drop-in.

Who supplies 5SY5202-7 and how is it quoted for volume purchases?

Sourced through independent distribution and quoted to order against an RFQ. Availability and current pricing are confirmed at quote time for any volume.
