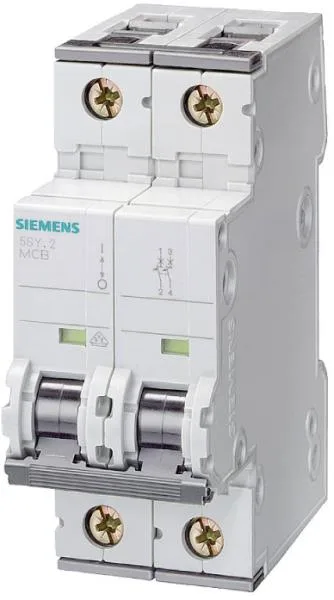

Siemens 5SY6525-7 — 1-Pole MCB (DIN Rail)

Siemens 5SY6525-7 SENTRON MCB, C-curve 25A 2-pole 1P+N

MPN5SY6525-7
Active

Siemens SENTRON 5SY6 series miniature circuit breaker, 5SY6525-7, C-curve 25 A, 2-pole 1P+N, 6 kA per EN 60898 / 15 kA per IEC 60947-2, 2 MW, IP20.

$10.67Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

5SY6525-7 — Identification
ParameterValue
Product designationMiniature circuit breaker
Brand nameSENTRON
Number of poles2
Pole design1P+N
Application suitabilityMechanical engineering / industry
5SY6525-7 — Electrical & Protection
ParameterValue
Tripping characteristic classC
Energy limitation class3
Overvoltage categoryIII
5SY6525-7 — Mounting & Connection
ParameterValue
Mounting positionany
Fastening methodQuick assembly system
Combined terminal, topYes
Combined terminal, bottomYes
Width36 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Modular width units2
Torque, min.-40 °C
Torque, max.75 °C
SealableYes
5SY6525-7 — Environmental
ParameterValue
IP protection classIP20, with connected conductors
Pollution degree3
Halogen-freeYes
Silicone-freeYes

Product details

The 25 A rating holds at 35 °C ambient. At 40 °C it's 23.8 A; at 45 °C it's 23.18 A; at 50 °C it's 22.55 A; at 55 °C it's 21.88 A. The breaker will still trip within its characteristic, but the continuous current it can carry without nuisance opening drops.

What the approvals tell you

Listed to IEC / EN 60898-1 and IEC / EN 60947-2, plus UL 1077. That dual rating covers both residential-style (60898) and industrial (60947-2) applications — the UL 1077 listing means it's accepted as a supplementary protector in North American panels.

Frequently asked questions

How do I get current pricing and availability for 5SY6525-7?

Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm price and lead time.

Will 5SY6525-7 drop into a panel specified around 5SY7210-7CC without rewiring?

Both are 2-pole 1P+N SENTRON MCBs on the same DIN-rail quick-assembly system, same 2 MW width (36 mm), same depth (76 mm). The 5SY6525-7 is a 25 A C-curve; the 5SY7210-7CC is a different rating. If the panel was wired for that footprint, the 5SY6525-7 will physically fit without rewiring — just verify the current rating matches the circuit protection requirements.

MPN
5SY6525-7
