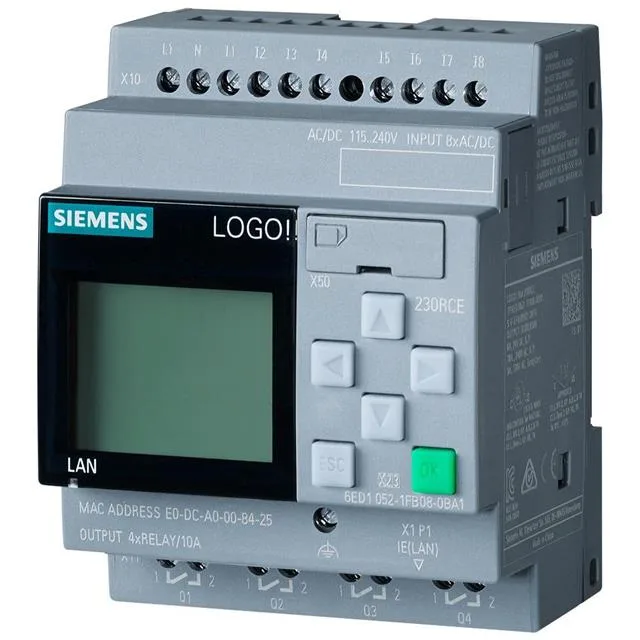

6AG1052-1FB08-7BA1 - Siemens
MPN6AG1052-1FB08-7BA1
Active
SIPLUS LOGO! 230RCE based on 6ED1052-1FB08-0BA1 with conformal coating, -25…+60 °C, start up -20 °C, logic module, display power supply / I/O: 115V/230V/relay, 8 DI/4 DQ, memory 400 blocks, modularly expandable, Ethernet, integrated web server, data log, user-defined web pages, standard microSD card for LOGO! Soft Comfort V8.3 or higher older projects executable cloud connection in all LOGO! 8.3 basic units
$658.04Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
I/O
| Parameter | Value |
|---|---|
| Digital inputs | 8 |
| Digital outputs | 4; Relays |
Electrical
| Parameter | Value |
|---|---|
| Permissible range, lower limit (DC) | 100 V |
| Permissible range, upper limit (DC) | 253 V |
| Short-circuit protection | No; external fusing necessary |
Environmental
| Parameter | Value |
|---|---|
| Installation altitude, max. | 2 000 m |
| Temperature, min. | -40 °C |
| Temperature, max. | 70 °C |
| Ambient temperature vs. altitude/pressure derating | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) |
Mechanical
| Parameter | Value |
|---|---|
| Width | 71.5 mm |
| Height | 90 mm |
| Depth | 60 mm |
MPN
6AG1052-1FB08-7BA1
