Temperature-rated control for harsh environments

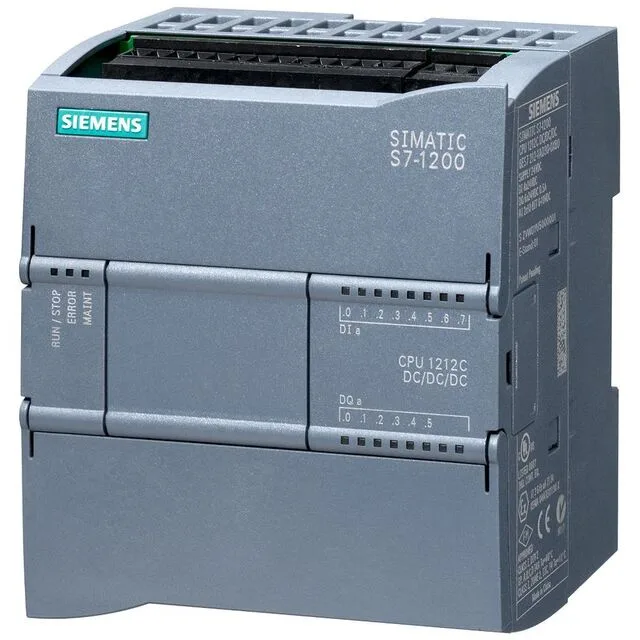

The Siemens 6AG1212-1AE40-4XB0 is the SIPLUS variant of the standard S7-1200 CPU 1212C, rated for -40 to 70 °C ambient. That range holds up to the steam and heat inside a tire-curing press enclosure where standard electronics degrade. It nails the cure recipe with the same 24 V DC supply and 1 Mbyte work memory as the base version, but tolerates the thermal cycling that kills ordinary controllers. Programmable in FBD, LAD, or SCL — pick the language that best matches the existing plant-standard logic. Three language options mean the line's control code can be maintained without retraining the electricians on a new paradigm. Integrated web server allows remote monitoring of input/output states and diagnostics over UDP/TCP. Forcing outputs is supported for commissioning stubs before the press is live.
Drop-in vs. the standard 6ES7212-1AE40-0XB0
Mechanical dimensions (100 × 90 × 75 mm) and 24 V DC power are identical to the standard CPU 1212C (6ES7212-1AE40-0XB0), so it slots into the same panel cutout and wiring loom. No rewiring or adapter plate needed. Rated for -40 to 70 °C ambient. Programming languages, I/O count, and PROFINET interface are shared between the two order codes. The only hardware add-on for legacy fieldbus is the CM 1243-5 PROFIBUS module, which both variants require.
Mounting and integration
75 mm depth leaves clearance for terminal blocks. PROFINET interface with autocrossing simplifies switchless line topologies. For existing PROFIBUS plants, order the CM 1243-5 separately — it occupies the left-side bus connector slot. Inputs accept 2-wire sensors; analog inputs handle 0 to +10 V. The PID controller block is built in, so no extra module for simple loop control on a steam valve.
