6AG1223-1PL32-2XB0 - Siemens
MPN6AG1223-1PL32-2XB0
Active

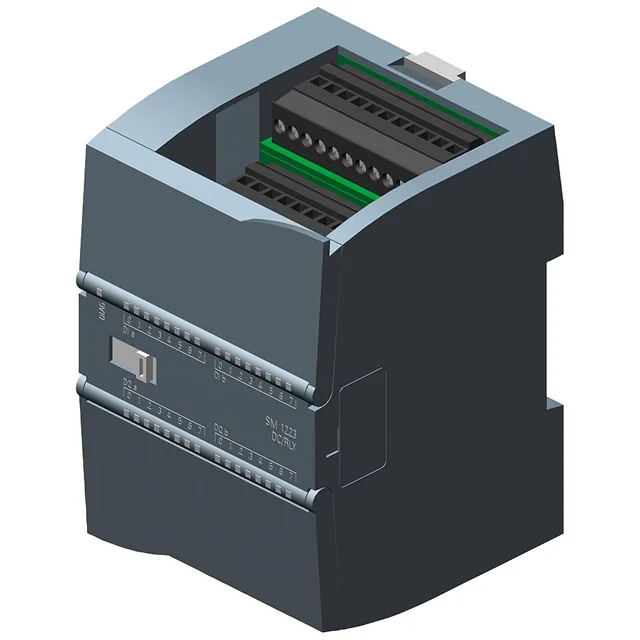

SIPLUS S7-1200 SM 1223 16DI/16DQ RLY based on 6ES7223-1PL32-0XB0 with conformal coating, -40…+70 °C, start up -25 °C, digital input/output 16 DI/16 DQ, 16 DI 24 V DC, sink/source, 16 DQ, relay 2 A
$405.13 – $1,079.78Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
I/O
| Parameter | Value |
|---|---|
| Digital inputs | 16 |
| Digital outputs | 16 |
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 5 V DC to 30 V DC |
| Permissible range, lower limit (DC) | 20.4 V |
| Permissible range, upper limit (DC) | 28.8 V |
| For signal "1" | 15 V DC at 2.5 mA |
| For signal "0" | 5 V DC at 1 mA |
| Current for signal "1" (typ.) | 4 mA |
| Max. | 70 °C |
| Power loss (typ.) | 10 W |
| Current consumption from backplane bus (5 V DC), max. | 180 mA |
| Current consumption from load voltage L+ (no load), max. | 4 mA/input 11 mA/relay |
| Short-circuit protection | No; to be provided externally |
| Isolation: between channels | Relays |
| Isolation: channels to backplane bus | 1 500 V AC for 1 minute |
| Max. cable length, shielded | 500 m |
| Max. cable length, unshielded | 150 m |
Performance
| Parameter | Value |
|---|---|
| Parameterizable | Yes |
| Diagnostic alarm | Yes |
| Diagnostics function | Yes |
Environmental
| Parameter | Value |
|---|---|
| IP protection rating | IP20 |
| Min. | -40 °C |
Mechanical
| Parameter | Value |
|---|---|
| Height | 100 mm |
| Width | 70 mm |
| Depth | 75 mm |
| Weight (approx.) | 350 g |
Specifications
| Parameter | Value |
|---|---|
| Rated value (AC) | 5 V AC to 250 V AC |
MPN
6AG1223-1PL32-2XB0
