Siemens 6EP3436-8UB00-0AY0
MPN6EP3436-8UB00-0AY0
Active

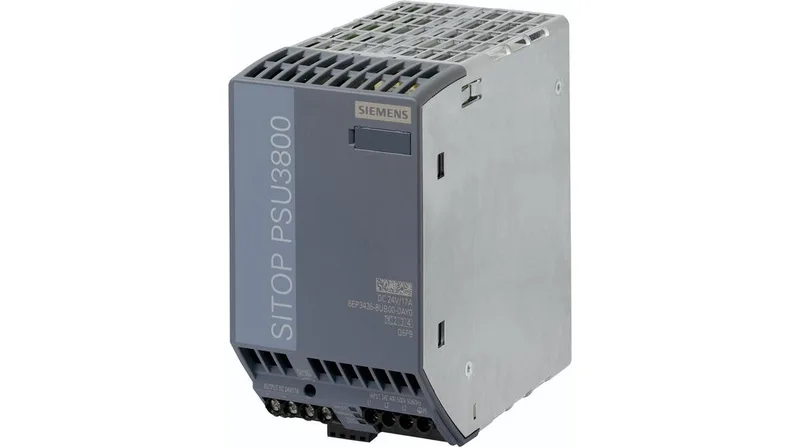

SITOP PSU3800 24 V/17 A stabilized power supply input: 400-500 V 3 AC output: 24 V DC/17 A optimized for battery charging *Ex approval no longer available*
$191.77 – $296.94Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Electrical – Output
| Parameter | Value |
|---|---|
| Rated output voltage (DC) | 24 V |
| Rated current | 17 A |
| Rated current range | 0 ... 17 A; +60 ... +70 °C: Derating 2%/K |
| Output power at rated voltage/current (typ.) | 26 W |
| Output voltage characteristic | Controlled, isolated DC voltage |
| Output 1 rated voltage (DC) | 24 V |
| Output voltage adjustable | Yes |
Electrical – Input & Efficiency
| Parameter | Value |
|---|---|
| Supplied active power (typ.) | 408 W |
| Efficiency | 94 % |
| Power supply network type | 3-phase AC |
| Maximum | 3.5 mA |
Protection & Isolation
| Parameter | Value |
|---|---|
| Ingress protection (IP) rating | IP20 |
| Protection class | Class I |
| Short-circuit proof output | Yes |
| Short-circuit protection design | Alternatively, constant current characteristic approx. 19 A or latching shutdown |
| Galvanic isolation input/output | Yes |
| Galvanic isolation (SELV / standards) | Safety extra low output voltage Vout according to EN 60950-1 |
Connections
| Parameter | Value |
|---|---|
| Electrical connection type | screw-type terminals |
| Input terminals | L1, L2, L3, PE: 1 screw terminal each for 0.2 ... 4 mm² single-core/finely stranded |
| Output terminals | +, -: 2 screw terminals each for 0.2 ... 4 mm² |
Mechanical
| Parameter | Value |
|---|---|
| Mounting method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| Enclosure width | 70 mm |
| Enclosure height | 125 mm |
| Enclosure depth | 125 mm |
| Side-by-side mountable | Yes |
| Mounting clearance, left | 0 mm |
| Mounting clearance, right | 0 mm |
| Mounting clearance, top | 50 mm |
| Mounting clearance, bottom | 50 mm |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +70 °C; with natural convection |
| Storage temperature range | -40 ... +85 °C |
| Transport temperature range | -40 ... +85 °C |
| Climatic class (IEC 60721) | Climate class 3K3, 5 … 95% no condensation |
| Current limitation of inrush current at 25 °C maximum | 16 A |
Approvals & EMC
| Parameter | Value |
|---|---|
| CE marking | Yes |
| UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 |
| CSA approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 |
| NEC Class 2 | No |
| ATEX approval | No |
| IECEx approval | No |
| UL HazLoc approval | No |
| cCSAus Class I Div 2 (hazardous loc.) | No |
| EAC approval | Yes |
| Shipbuilding approval | ABS, DNV GL |
| EMC – emission standard | EN 55022 Class B |
| EMC – immunity standard | EN 61000-6-2 |
Reliability & Features
| Parameter | Value |
|---|---|
| Equipment bridging | Yes; switchable characteristic |
| Status indicators / display | Green LED for 24 V OK |
Electrical
| Parameter | Value |
|---|---|
| Adjustable Output Voltage | 24 ... 28 V |
MPN
6EP3436-8UB00-0AY0
