Siemens 6ES7134-4GB62-0AB0 — PLC I/O & Expansion Modules

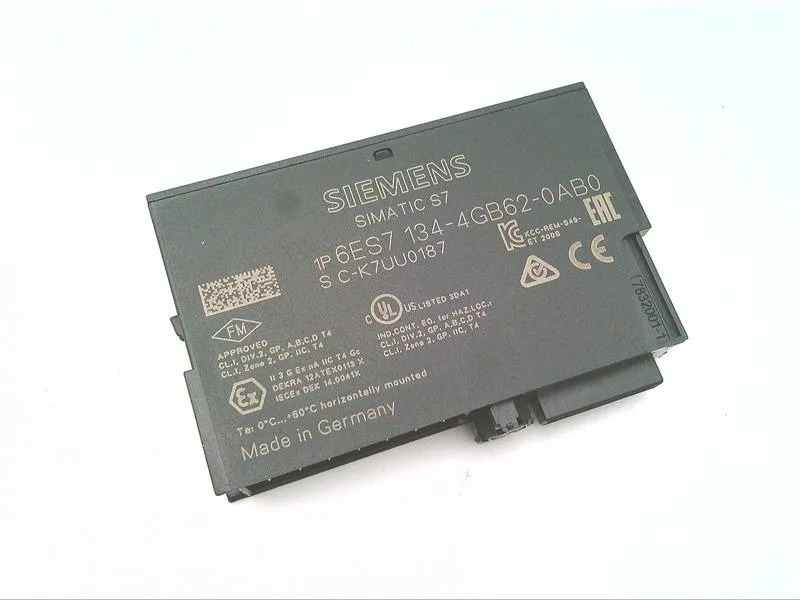

Siemens 6ES7134-4GB62-0AB0 ET 200S Analog Module, 2AI/2AO

MPN6ES7134-4GB62-0AB0

Siemens ET 200S analog I/O module, 2 input / 2 output, 0/4-20 mA, 15 x 81 x 52 mm, isochronous mode, current production.

$456.00 – $533.40Ref. price · indicative, final on quote

Add to RFQ

Siemens 6ES7134-4GB62-0AB0 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7134-4GB62-0AB0 — I/O
Parameter	Value
Analog inputs	2

6ES7134-4GB62-0AB0 — Electrical
Parameter	Value
Rated value (DC)	24 V
Power loss (typ.)	1.9 W
Current consumption from load voltage L+ (no load), max.	80 mA; without load
Short-circuit protection	Yes
Reverse polarity protection	Yes
Isolation: between channels	No
Isolation: channels to backplane bus	Yes
Max. cable length, shielded	200 m

6ES7134-4GB62-0AB0 — Performance
Parameter	Value
Resolution incl. overrange (bit, with sign), max.	16 bit
Parameterizable	Yes
Group fault indicator (SF, red LED)	Yes

6ES7134-4GB62-0AB0 — Mechanical
Parameter	Value
Height	81 mm
Width	15 mm
Depth	52 mm
Weight (approx.)	45 g

Product details

What this module is

The Siemens 6ES7134-4GB62-0AB0 is an ET 200S analog I/O module packing two analog inputs and two analog outputs in a 15 mm wide slice. It covers 0 to 20 mA, 4 to 20 mA, and −20 to +20 mA ranges, with isochronous mode for deterministic updates. Cycle time hits 250 µs across all channels. Short-circuit proof and reverse polarity protected. Wire-break diagnostics active on the 4 to 20 mA range only. Group error LED (SF red) plus per-channel diagnostics readable over the bus.

Integration notes

Step response selectable: none (1x cycle time), low (4x), medium (16x), high (32x). Overflow/underflow and hardware interrupt available. Between-channel isolation not provided; backplane-to-channel is isolated.
