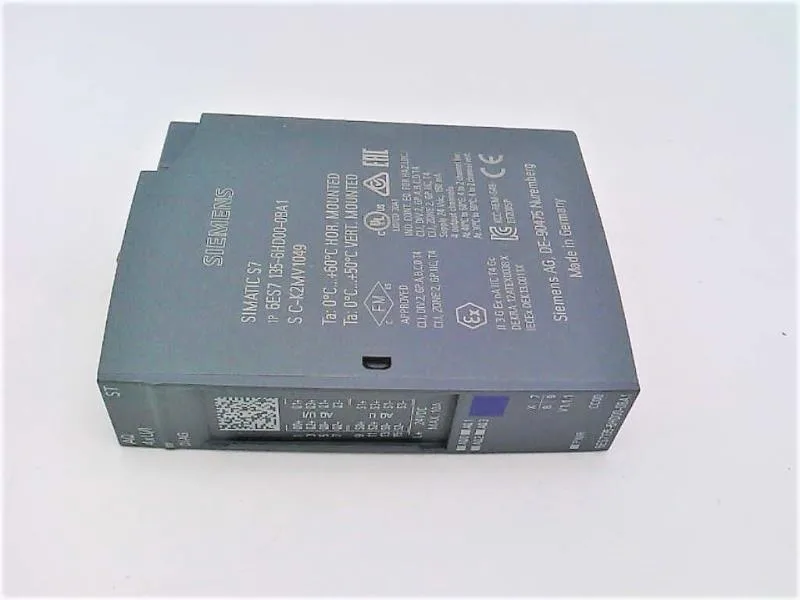

6ES7135-6HD00-0BA1
MPN6ES7135-6HD00-0BA1
Active
SIMATIC ET 200SP, Analog output module, AQ 4XU/I Standard, suitable for BU type A0, A1, Color code CC00, Module diagnostics, 16 bit, +/-0.3%
$152.40Ref. price · indicative, final on quote
StockContact for availability
Lead timeCall for availability wk
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Outputs
| Parameter | Value |
|---|---|
| Number of analog outputs | 4 |
| Output range: -10 V to +10 V | Yes; 16 bit incl. sign |
| Output range: 0 to 10 V | Yes; 15 bit |
| Output range: 1 V to 5 V | Yes; 13 bit |
| Output range: 0 to 20 mA | Yes; 15 bit |
| Output range: 4 to 20 mA | Yes; 14 bit |
| Output range: -20 mA to +20 mA | Yes; 16 bit incl. sign |
| Load resistance, current outputs, max. | 500 Ω |
| Load resistance, voltage outputs, min. | 2 kΩ |
| Voltage output, short-circuit current, max. | 45 mA |
| Inductive load, current outputs, max. | 1 mH |
| Capacitive load, voltage outputs, max. | 1 µF |
| Cable length, shielded, max. | 1 000 m; 200 m for voltage output |
Performance
| Parameter | Value |
|---|---|
| Resolution (incl. sign, with overrange), max. | 16 bit |
| Error, voltage output (rel. to output range) | 0.3 % |
| Error, current output (rel. to output range) | 0.3 % |
| Temperature error (rel. to output range) | 0.005 %/K |
| Settling time, resistive load | 0.1 ms |
| Settling time, inductive load | 0.5 ms |
| Settling time, capacitive load | 1 ms |
Power
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 19.2 V |
| Power loss (typ.) | 1.5 W |
| Reverse polarity protection | Yes |
Diagnostics
| Parameter | Value |
|---|---|
| Supply voltage monitoring | Yes |
| Diagnostics function | Yes |
| Diagnostic interrupt/alarm | Yes |
| Wire-break detection (current outputs) | Yes |
| Short-circuit detection (voltage outputs) | Yes |
Isolation
| Parameter | Value |
|---|---|
| Isolation: channels to backplane bus | Yes |
| Isolation: between channels | No |
| Isolation test voltage | 707 V DC (type test) |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, horizontal mounting, max. | 60 °C; Observe derating |
| Operating temperature, horizontal mounting, min. | -30 °C; < 0 °C as of FS07 |
| Operating temperature, vertical mounting, max. | 50 °C; Observe derating |
| Operating temperature, vertical mounting, min. | -30 °C; < 0 °C as of FS07 |
| Installation altitude, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
Mechanical
| Parameter | Value |
|---|---|
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
MPN
6ES7135-6HD00-0BA1
