Siemens 6ES7136-6DC00-0CA0 — Digital Output Modules

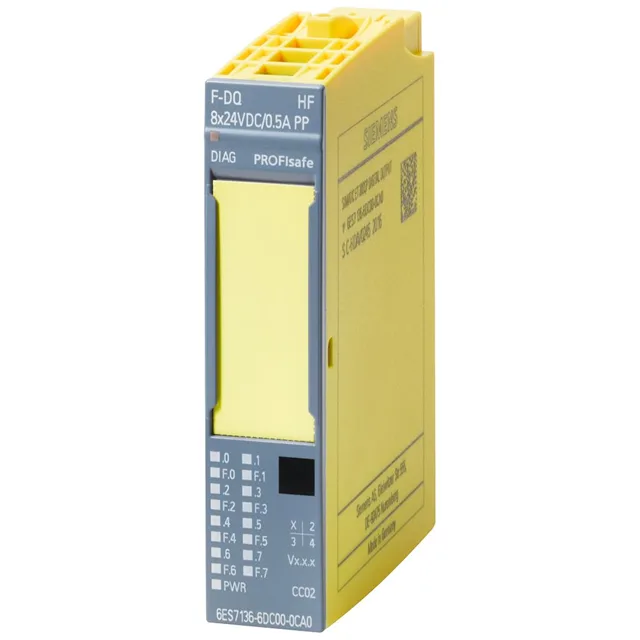

Siemens 6ES7136-6DC00-0CA0 Digital Output Module, 8×0.5 A

MPN6ES7136-6DC00-0CA0
Active

Siemens 6ES7136-6DC00-0CA0, ET 200SP digital output module, 8 transistor outputs, 0.5 A per channel, SIL 3, 15 mm width, 3 W typ. loss.

$193.04Ref. price · indicative, final on quote
Siemens 6ES7136-6DC00-0CA0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7136-6DC00-0CA0 — Outputs
ParameterValue
Digital outputs8
Output typeTransistor
6ES7136-6DC00-0CA0 — Electrical
ParameterValue
Rated value (DC)24 V
Output current, resistive load, max.30 Hz; Symmetrical
Output current at signal "1" (rated)0.5 A
Total output current per module, max.3 A; note derating data in the manual
Permissible range, upper limit (DC)28.8 V
Permissible range, lower limit (DC)19.2 V
Output voltage at signal "1" (min.)24 V; L+ (-0.5 V)
Residual current at signal "0", max.0.5 mA
Output current up to 60 °C, max.2 A
Power dissipation (typ.)3 W
Inductive shutdown voltage clampTyp. -39 V
Load resistance, upper limit12 000 Ω
Load resistance, lower limit48 Ω
Isolation between channelsNo
Isolation between channels and backplane busYes
Isolation test voltage707 V DC (type test)
6ES7136-6DC00-0CA0 — Protection & Diagnostics
ParameterValue
Short-circuit protectionYes
Reverse polarity protectionYes
Diagnostics functionYes
Diagnostic alarmYes
Short-circuit response threshold (typ.)Min. 0.7 A
Output can drive a digital inputYes; digital output, according to IEC 61131-2, type 0.5
6ES7136-6DC00-0CA0 — Performance
ParameterValue
Switching frequency, inductive load, max.0.1 Hz; according to IEC 60947-5-1, DC-13, symmetrical
Switching frequency, lamp load, max.10 Hz; Symmetrical
6ES7136-6DC00-0CA0 — Environmental
ParameterValue
Operating temperature, horizontal mount, max.60 °C
Operating temperature, horizontal mount, min.0 °C
6ES7136-6DC00-0CA0 — Mechanical & Connection
ParameterValue
Cable length, unshielded, max.100 m
Cable length, shielded, max.100 m
Width15 mm
Height73 mm
Depth58 mm
Weight (approx.)48 g

Product details

8 outputs, 0.5 A per channel, SIL 3 rated

The Siemens 6ES7136-6DC00-0CA0 is an ET 200SP digital output module with 8 transistor outputs, each rated 0.5 A max (note the derating data in the manual).

Current derating and thermal budget

The total module current is capped at 3 A, with per-channel limits dropping from 0.5 A at 40 °C to 2 A module total at 50 °C and 60 °C. That means if you pack all 8 channels near the limit in a warm cabinet, the sum must stay under 2 A — a real constraint for grouping high-duty solenoids or valve banks on one slice.

Diagnostics and integration

Diagnostics are per-channel (red LED) plus a module DIAG LED (green/red). The module fits BU type A0 base units, auto-encodes on the backplane, and supports firmware update. Power loss is 3 W typ., and the 15 mm width packs tightly on a DIN rail.
