Siemens 6ES7136-6PA00-0BC0 F-PM-E Power Module, SIL 3, 24 V

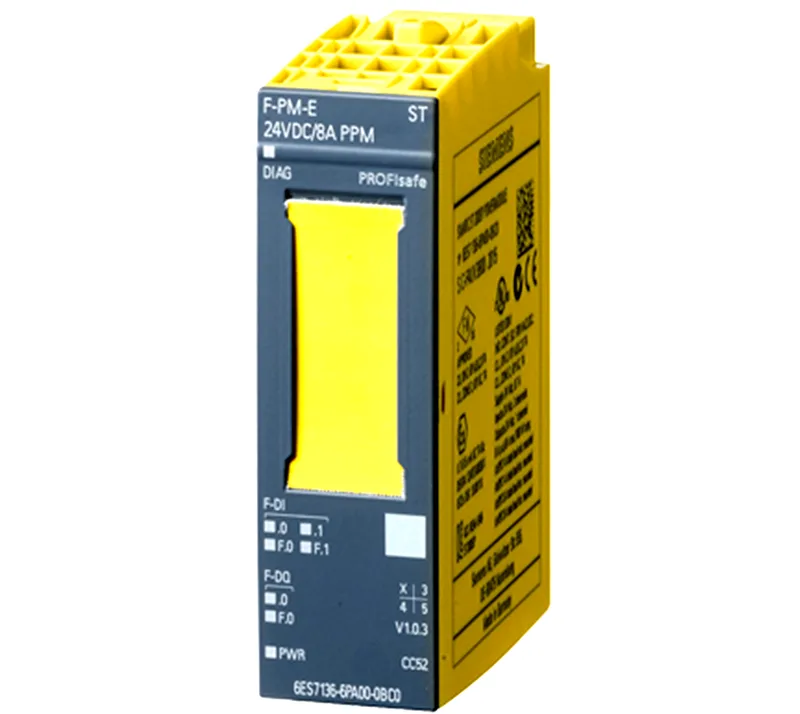

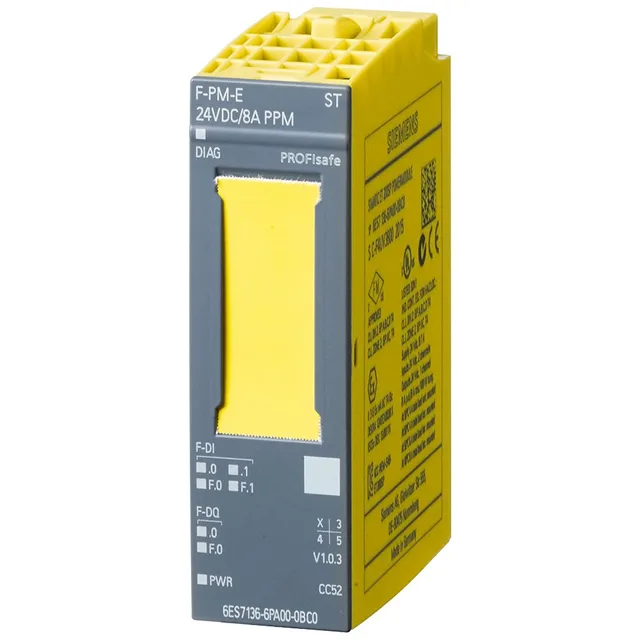

Siemens ET 200SP F-PM-E fail-safe power module, 6ES7136-6PA00-0BC0, 24 V DC, 2 fail-safe digital outputs, SIL 3, BU type C0.
Specifications
| Parameter | Value |
|---|---|
| Configurable from STEP 7 TIA Portal version | V12 |
| Parameter | Value |
|---|---|
| I&M data support | Yes; I&M0 to I&M3 |
| Diagnostics function | Yes; See Chapter "Alarms/diagnostic messages" in the manual |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 20.4 V |
| Current consumption, max. | 21 mA; From the backplane bus |
| Power loss (typ.) | 5 W |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Isolation test voltage | 707 V DC (type test) |
| Parameter | Value |
|---|---|
| Input data area | 7 byte |
| Output data area | 5 byte |
| Parameter | Value |
|---|---|
| Operating temperature, horizontal install, min. | 0 °C |
| Operating temperature, horizontal install, max. | 60 °C |
| Operating temperature, vertical install, max. | 50 °C |
| Operating temperature, vertical install, min. | 0 °C |
| Parameter | Value |
|---|---|
| Width | 20 mm |
| Height | 73 mm |
| Depth | 58 mm |
Product details
Frequently asked questions
Is 6ES7136-6PA00-0BC0 compatible with Siemens ET 200SP?
Yes, it is an ET 200SP F-PM-E module that mounts on a BU type C0 base unit in the standard ET 200SP rack.
SIL 3 fail-safe power module for ET 200SP
The Siemens 6ES7136-6PA00-0BC0 is an ET 200SP F-PM-E fail-safe power module that supplies the module bus and provides two fail-safe digital outputs, rated SIL 3 per IEC 61508. It accepts a 24 V DC supply with a tolerance of L+ (-1.5 V) minimum, so it runs cleanly on a regulated 24 V bus without needing a separate power supply.
The two fail-safe outputs are rated 0.3 A each at up to 60 °C, and the total encoder supply current is 600 mA. The load impedance range is 3 Ω to 2000 Ω, so it drives solenoids, contactors, and indicator lamps within that window. Lamp load switching is limited to 4 Hz symmetrical. Input thresholds are -30 to +5 V for signal "0" and +15 to +30 V for signal "1", with a typical current draw of 3.7 mA at 24 V. The input filter is non-parameterizable with a 0.4 ms minimum and 20 ms maximum transition time — fast enough for most safety sensor signals but not for high-speed encoder counting. There is no channel-to-channel isolation between the outputs, so both outputs share a common reference. Isolation is tested at 707 V DC type test. The module draws 5 W typical power loss, which adds to the cabinet thermal budget.
