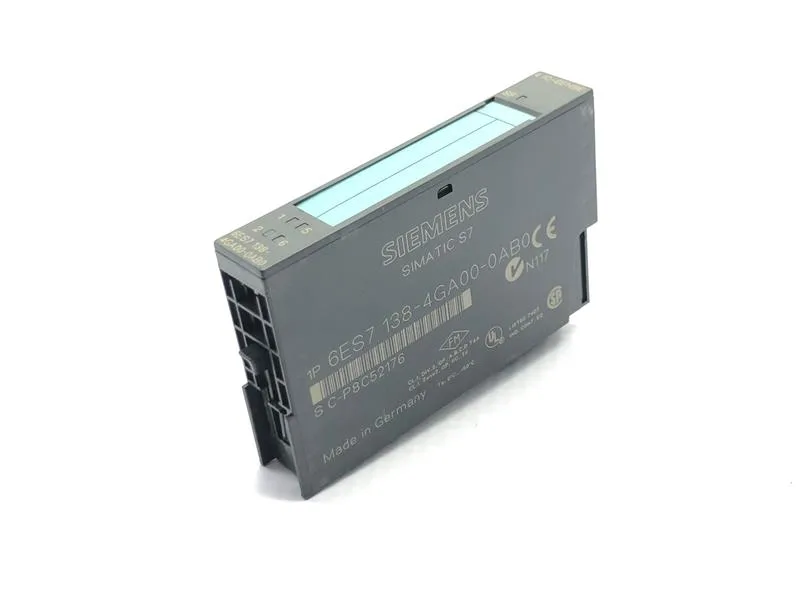

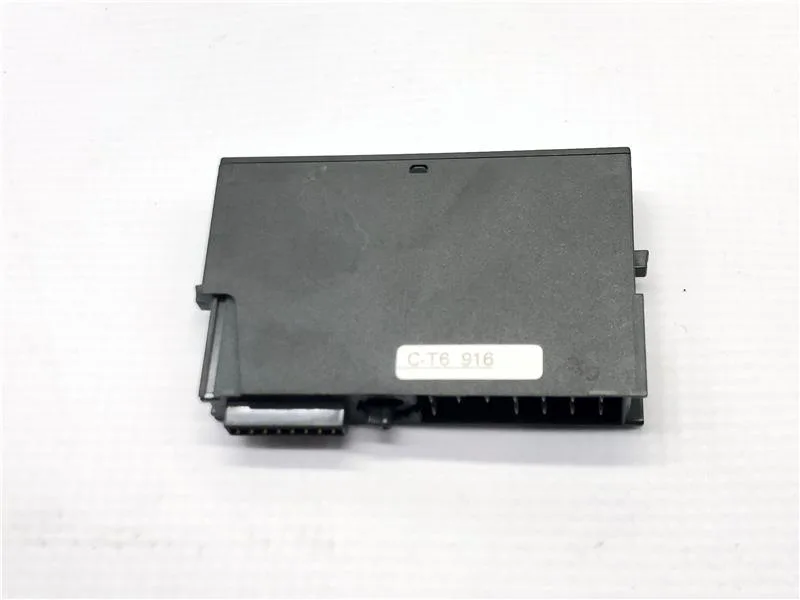

Siemens SIMATIC DP, electronic module for ET 200S, 4 IQ-Sense 24 V DC, 15 mm width, pack of 5.
| Parameter | Value |
|---|---|
| Digital inputs | 4 |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V; From power module |
| Power loss (typ.) | 0.85 W |
| Reverse polarity protection | Yes |
| Isolation test voltage | 500 V DC |
| Isolation: between channels | No |
| Isolation: channels to backplane bus | Yes |
| Max. cable length, shielded | 50 m |
| Max. cable length, unshielded | 50 m |
| Parameter | Value |
|---|---|
| Diagnostics function | Yes; Diagnostic information readable |
| Group fault indicator (SF, red LED) | Yes |
| Parameter | Value |
|---|---|
| Height | 81 mm |
| Width | 15 mm |
| Depth | 52 mm |
| Weight (approx.) | 35 g |
The 6ES7138-4GA00-0AB0: 4 digital inputs for IQ-Sense sensors on the ET 200S platform. Rated 24 V DC sourced from the power module; no separate supply needed. Diagnostics readable via the backplane, group fault (SF) LED and per-channel green status indicators. Isolation tested at 500 V DC between channels and backplane bus. Cycle time for all channels max 3.24 ms. Packing of 5 units per order. 15 mm width, 52 mm depth, 81 mm height — fits the standard ET 200S rail spacing.
15 mm.
52 mm.
