What this IO-Link master does in the panel

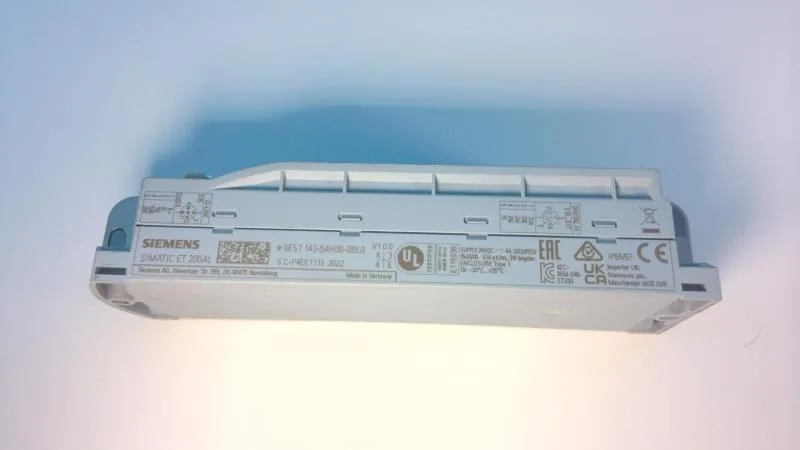

The Siemens 6ES7143-5AH00-0BL0 is an IO-Link master module for the ET 200 family, handling 8 digital outputs that draw supply from the 2UA+ rail of the IO-Link master itself. It speaks IO-Link protocol 1.1 at 38.4 kBd (COM2) and carries an IODD file for device configuration. Rated for SIL 2 per IEC 62061, it can sit in a safety-related control loop provided the rest of the chain — sensor, logic, actuator — also carries the same SIL rating. The diagnostic alarm is parameterizable, and the module reports channel status via green LEDs and a combined green/red module diagnostics LED.
Temperature range and enclosure — where it survives
Ambient operating range is -30 °C to 55 °C, which covers most indoor control cabinets and outdoor enclosures in temperate climates provided the enclosure itself is rated for the low end. The IP65/67 rating means the module is sealed against dust ingress and temporary submersion — suitable for washdown zones or outdoor installation without a secondary enclosure, provided the mating connectors are also IP-rated.
Electrical characteristics — what drives the wiring
Rated supply is 24 V DC; typical power loss is 4 W. The 8 outputs are short-circuit protected — the module detects shorts to ground on outputs and encoder supply, and reports them module by module. Maximum output current per encoder is 0.7 A, but total current depends on what the IO-Link master supplies via the 2UA+ rail. Input signal thresholds are -3 to +5 V for a logic 0, and +11 to +30 V for a logic 1, with a typical current draw of 3 mA at signal 1. Minimum cycle time is 3 ms, with switching delays of 1.2 ms to 4.8 ms for both rising and falling edges. Unshielded cable runs up to 30 m are supported — adequate for most sensor-to-module distances in a machine cell. Isolation is tested at 707 V DC (type test), with no channel-to-channel isolation between the digital inputs.
