What it is and where it fits

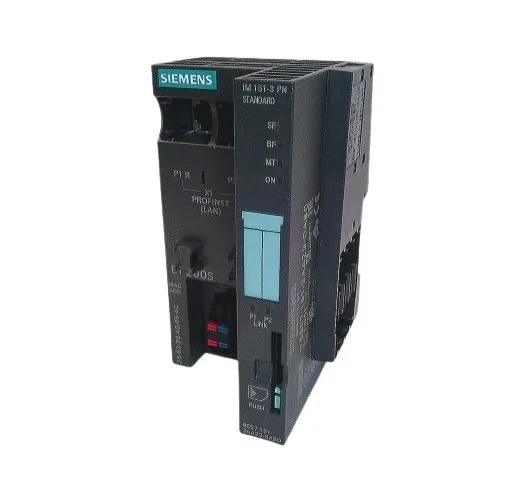

The Siemens 6ES7151-3AA23-0AB0 is an IM 151-3 PN ST interface module for the ET 200S distributed I/O system. It serves as the PROFINET gateway, linking up to 63 electronic, power, or motor starter modules (total width up to 2 m) to a higher-level controller via two RJ45 ports at 100 Mbit/s.
Key ratings and what they mean for your panel
Two RJ45 ports enable line or ring topology; with MRP you get media redundancy failover within milliseconds. For time-synchronized application – like coordinated drive motion – IRT delivers deterministic cycle times. ARP handles automatic replacement of a failed module without project engineering: swap the hardware, the IO controller picks up the new device. Data volume caps at 256 bytes input and 256 bytes output. Power consumption is 3.3 W typical. The module holds its power-up state for 20 ms after a mains dip – long enough to ride through short grid glitches without a processor restart. Dimensions are 60 x 119.5 x 75 mm, occupying a single ET 200S base unit slot.
What this module is NOT
This module is an interface for ET 200S, not a programmable controller. It operates from 0 °C to 60 °C.
UL approval and CE mark are noted in the spec.
