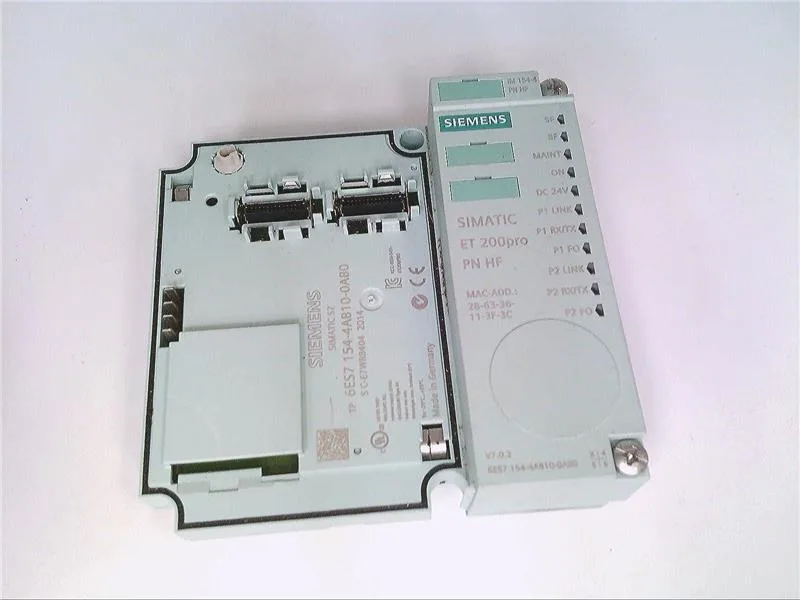

PROFINET IO Interface for ET 200 PRO
The 6ES7154-4AB10-0AB0: Diagnostic and hardware interrupts are parameterizable, allowing the safety loop to be tuned to specific failure modes — a requirement when the module is integrated into a functional safety architecture where fault reaction must be deterministic.
Harsh-Environment Build and Mounting
Housing is 135 mm wide, 130 mm high, 60 mm deep, approx. 490 g. Hot swapping of modules possible. Supply voltage is 24 V DC with reverse polarity protection against destruction and short-circuit protection via an exchangeable fuse in the lower part. Power loss is 6 W typical, dependent on terminal module and load conditions.
Diagnostics and Fault Indication
Six LEDs provide on-device status: LINK, MAINT, RX/TX, bus fault (BF red), group error SF (red), and 24 V supply monitoring (green). The bus fault and group error LEDs directly indicate network or module health for fast fault isolation at the cabinet. Isolation between supply voltage and electronics is tested at 707 V DC (type test), confirming dielectric strength for galvanic separation. SNMP and ping support enable integration into managed network monitoring.
