The 6ES7193-6AS00-0AA0: Cable length on the FastConnect trunk is limited to 15 m between this BA-SEND and the first ET-CONNECTION bus node, and that restriction applies only when the interface module is running firmware V3.3 or later. For longer drops, plan on a repeater or rethink the topology. Temperature range covers most cabinet conditions: -30 to 50 °C vertical mount, -30 to 60 °C horizontal. If you're packing heat in a small enclosure, the horizontal limit gives you a bit more headroom.
6ES7193-6AS00-0AA0 Siemens BusAdapter BA-SEND, FastConnect
MPN6ES7193-6AS00-0AA0
Active

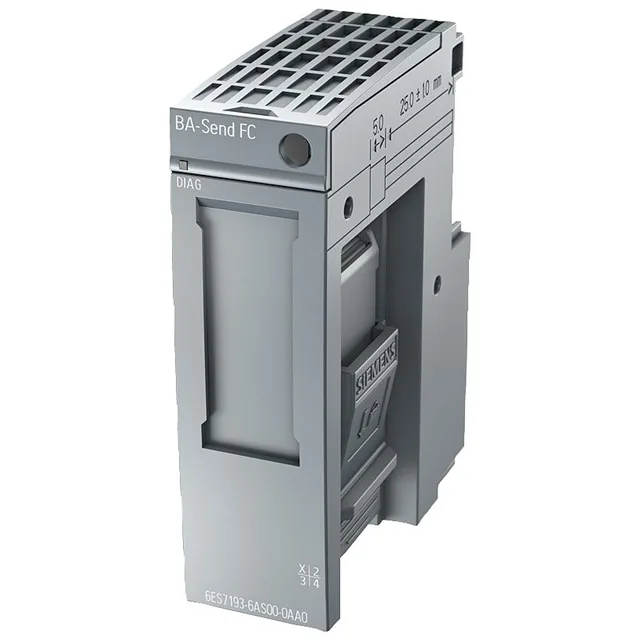

Siemens SIMATIC ET 200SP BusAdapter BA-SEND, 6ES7193-6AS00-0AA0, 1x FastConnect, 20x69.5x59 mm.
$134.20 – $235.20Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Mechanical
| Parameter | Value |
|---|---|
| Height | 69.5 mm |
| Width | 20 mm |
| Depth | 59 mm |
| Weight (approx.) | 44 g |
Specifications
| Parameter | Value |
|---|---|
| Horizontal Installation, Max. | 60 °C |
| HW functional status | From FS05 |
Other specifications
| Parameter | Value |
|---|---|
| Cu conductors | 15 m; from IM firmware V3.3: between BA-send and the first ET-CONNECTION bus node and between all other bus nodes |
| FC (FastConnect) | Yes |
| Vertical installation, max. | 50 °C |
| Vertical installation, min. | -30 °C |
| Horizontal installation, min. | -30 °C |
| Number of interfaces ET connection | 1 |
| Installation altitude above sea level, max. | 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual |
Product details
Frequently asked questions
Will 6ES7193-6AS00-0AA0 drop into a panel designed for 6ES7193-4CC30-0AA0?
No. The 6ES7193-4CC30-0AA0 is 15 mm wide and 132 mm deep, so the panel cutout and backplane clearance are different. It also lacks a FastConnect port. These are mechanically distinct modules.
What is the maximum cable length on the ET connection?
15 m between the BA-SEND and the first ET-CONNECTION bus node, with the interface module firmware at V3.3 or higher.
