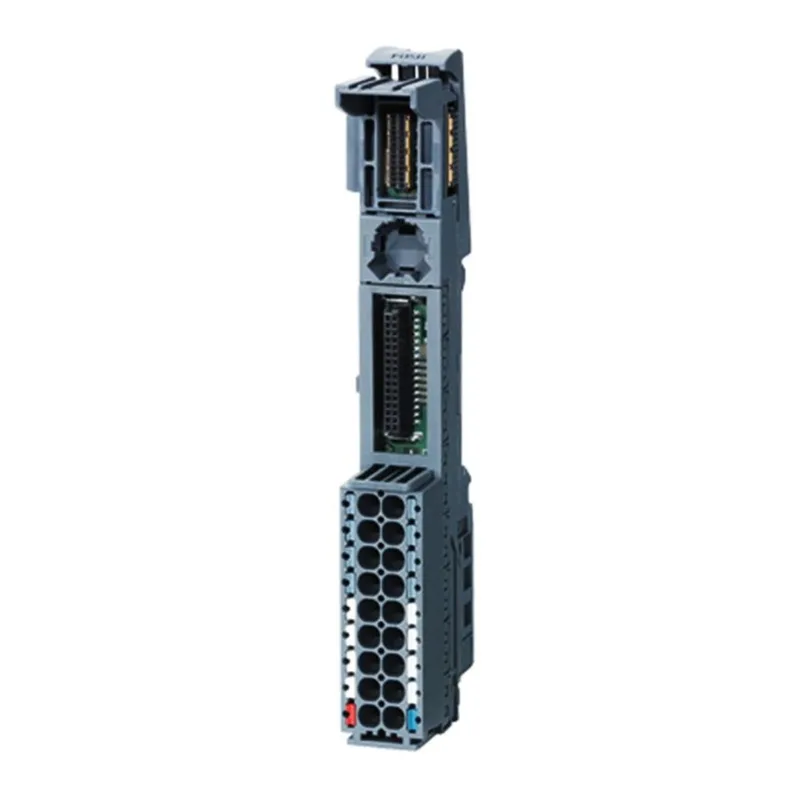

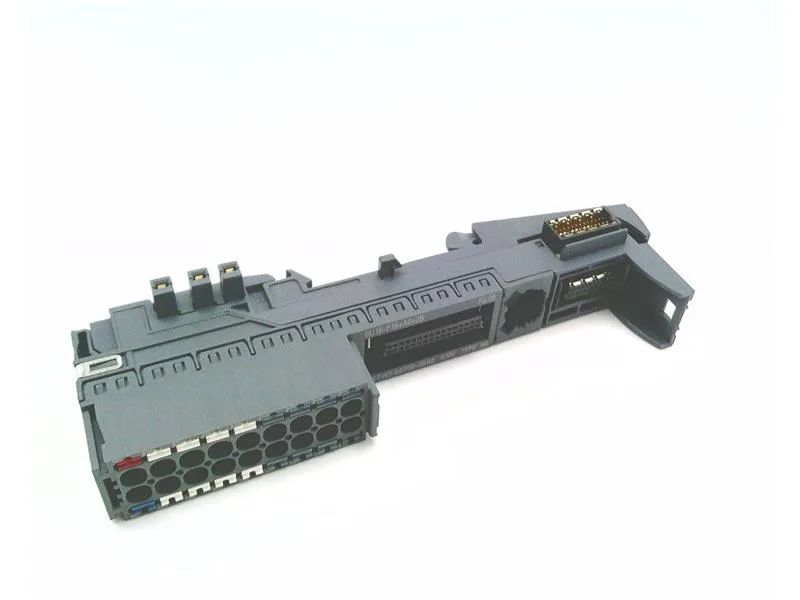

Siemens 6ES7193-6BP00-0BA0
MPN6ES7193-6BP00-0BA0
Active
SIMATIC ET 200SP, BaseUnit BU15-P16+A0+2B, BU type A0, Push-in terminals, without AUX terminals, bridged to the left, WxH: 15x 117 mm
$13.97Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Isolation test voltage | 707 V DC (type test) |
| Parameter | Value |
|---|---|
| Height | 117 mm |
| Width | 15 mm |
| Depth | 35 mm |
| Weight (approx.) | 40 g |
| Terminal type | Push-in terminal |
| For Process Terminals | CC00 to CC09 |
| Conductor cross-section, max. | 2.5 mm²; AWG 14 |
| Parameter | Value |
|---|---|
| Horizontal Installation, Max. | 60 °C |
| HW functional status | From FS06 |
MPN
6ES7193-6BP00-0BA0
