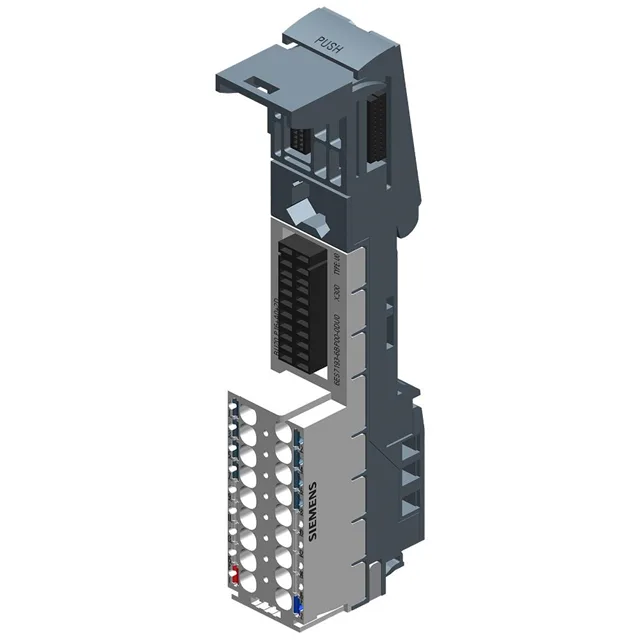

Siemens 6ES7193-6BP00-0DU0
MPN6ES7193-6BP00-0DU0
Active
SIMATIC ET 200SP, BaseUnit BU20-P16+A0+2D, BU-TYPE U0, Packaging Unit: 1 Pieces, Push-in terminals, w/o AUX-terminals, new potential group, WxH: 20mm x 117mm
$27.94Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Rated value (DC) | See manual |
| Isolation test voltage | 3 100 V DC |
| Parameter | Value |
|---|---|
| Height | 117 mm |
| Width | 20 mm |
| Depth | 35 mm |
| Weight (approx.) | 50 g |
| Terminal type | Push-in terminal |
| For Process Terminals | 277 V |
| Conductor cross-section, max. | 2.5 mm²; 1.5 mm² with wire end ferrule |
| Parameter | Value |
|---|---|
| For P1 and P2 bus | 277 V |
| For AUX bus | 277 V; Equal potential group to P1/P2 bus or PE |
| Parameter | Value |
|---|---|
| Rated value (AC) | See manual |
| Horizontal Installation, Max. | 60 °C |
| HW functional status | FS10 and higher |
MPN
6ES7193-6BP00-0DU0
