What it is and where it lands

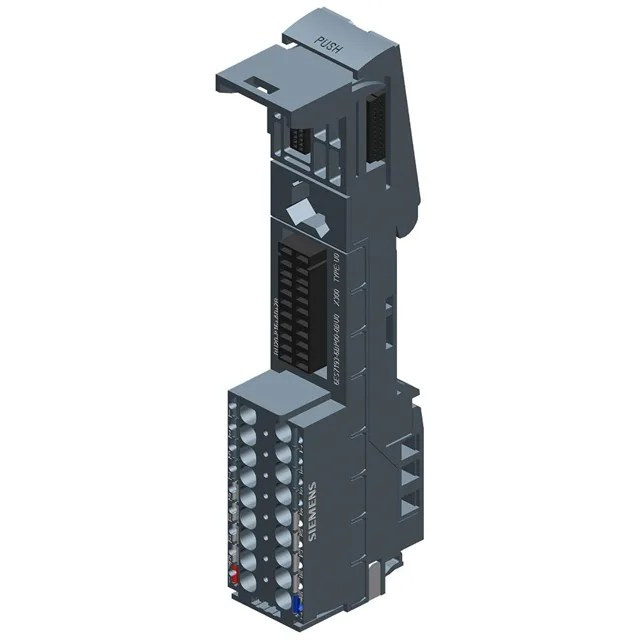

The 6ES7193-6BP00-2BU0 is a SIMATIC ET 200SP BaseUnit — specifically the BU20-P16+A0+2B variant, BU-TYPE U0, supplied in a packaging unit of 10 pieces. It carries 16 process terminals for the I/O module, two terminals tied to the and bus, and no AUX-bus terminals. The 20 mm width and 35 mm depth let it snap onto the standard DIN rail alongside other ET 200SP slices, and the push-in terminals accept solid or ferruled stranded conductors up to 2.5 mm² (1.5 mm² with ferrule).
Bus ratings and potential groups
The and bus and the process terminals are each rated for 277 V and 10 A max (derating depends on the module for process terminals). The AUX bus also carries 277 V and shares the same equal-potential group as / or PE. This BaseUnit does not start a new potential group — it continues the group from the left (bridged to the left BU), so the PE and bus potentials flow through without an extra isolation step.
What the ratings mean for a panel builder
The 10 A bus rating is the package limit for both the / rail and the process terminals. If you're feeding a row of I/O modules through this BaseUnit, the total draw through the / bus must stay under 10 A — watch the cumulative module current. The push-in terminals (0.14–2.5 mm² solid, 0.2–1.5 mm² with ferrule) are quick to wire on a production line; strip to 8–10 mm and push in. The automatic encoding means the I/O module's mechanical keying is read by the BaseUnit, so no DIP switches to set for addressing — it's done on insertion. Optional system-integrated shield connection lets you clamp a shield directly at the BaseUnit rather than running a separate shield terminal.
Lifecycle and sourcing
The 6ES7193-6BP00-2BU0 carries an active lifecycle status from Siemens. This is not an NRND or phase-out line — it is current-production hardware (HW FS10 and higher). For a BOM freeze or a line-down spare, this BaseUnit is available through the standard Siemens distribution channel and is sourced to order against an RFQ. Availability and current pricing are confirmed at quote time.
