Siemens 6ES7193-6BP20-0BB0
MPN6ES7193-6BP20-0BB0
Active

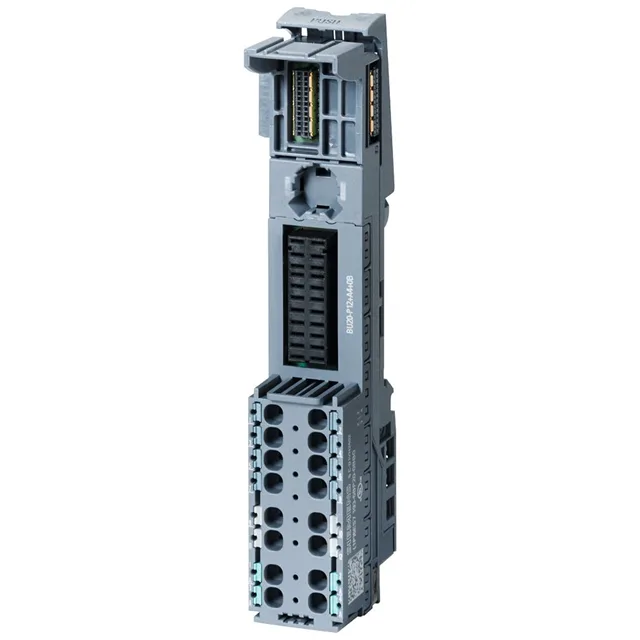

SIMATIC ET 200SP, BaseUnit BU20-P12+A4+0B, BU type B0, Push-in terminals, with 4 AUX terminals, bridged to the left, WxH: 20 mmx117 mm
$17.78Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Rated value (DC) | See manual |
| Isolation test voltage | 3 100 V DC |
| Parameter | Value |
|---|---|
| Height | 117 mm |
| Width | 20 mm |
| Depth | 35 mm |
| Weight (approx.) | 48 g |
| Terminal type | Push-in terminal |
| For Process Terminals | 230 V |
| Conductor cross-section, max. | 2.5 mm²; AWG 14 |
| Parameter | Value |
|---|---|
| For P1 and P2 bus | 230 V |
| For AUX bus | 230 V; Equal potential group to P1/P2 bus or PE |
| Parameter | Value |
|---|---|
| Rated value (AC) | See manual |
| Horizontal Installation, Max. | 60 °C |
| HW functional status | FS10 and higher |
MPN
6ES7193-6BP20-0BB0
