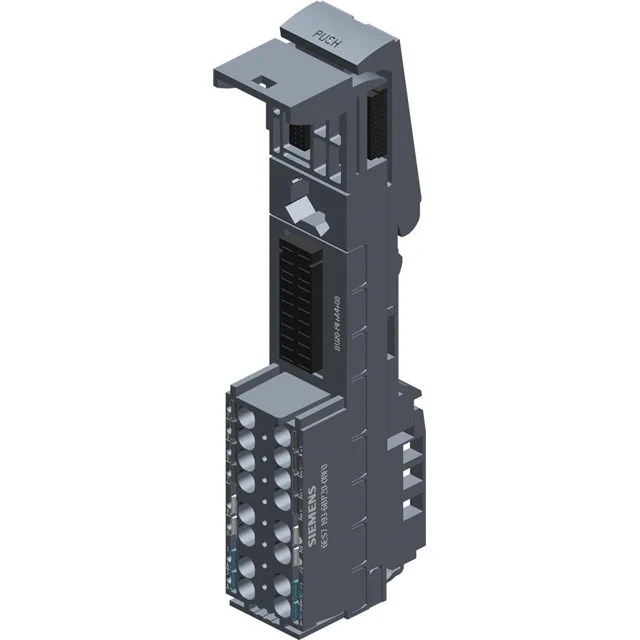

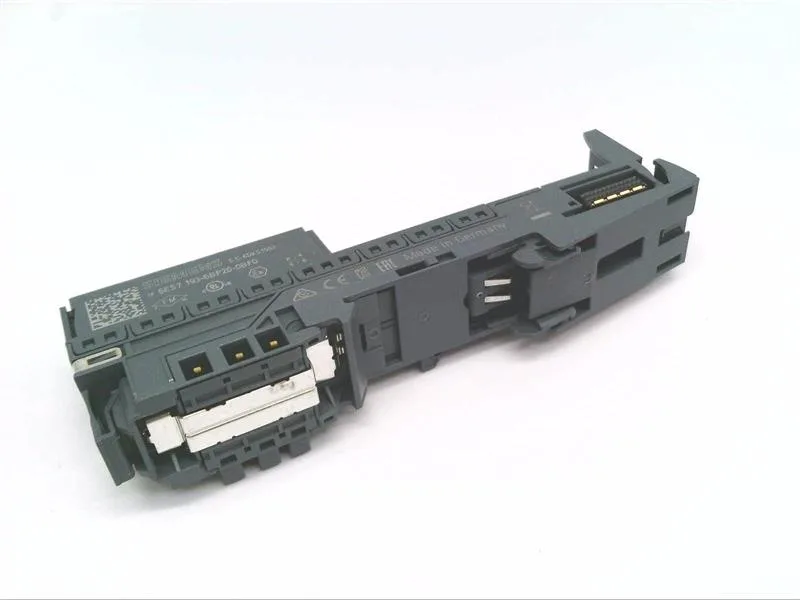

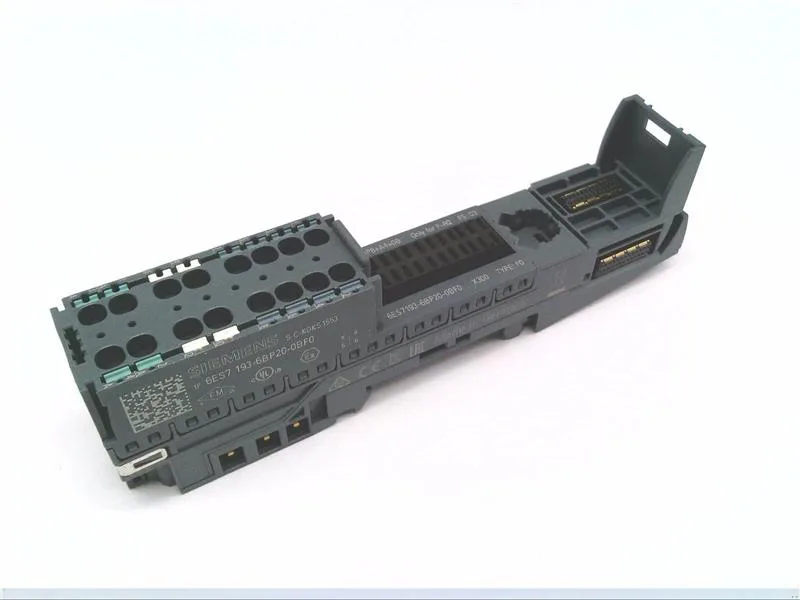

The Siemens 6ES7193-6BP20-0BF0 is a SIMATIC ET 200SP BaseUnit, designated BU20-P8+A4+0B, BU type F0 with Push-in terminals. It provides the mechanical and electrical interface between the I/O module and the backplane bus, carrying 4 AUX terminals bridged to the left for distributing supply voltage across the station. This single-slot BaseUnit (Type F0) routes the / bus and AUX bus at up to 10 A each, while the process terminals are rated for a maximum of 5 A. The 10 A rating holds up to 60 °C ambient, so no derating is needed in a typical 40 °C cabinet. The 20 mm width and 35 mm depth fit the ET 200SP mounting rail footprint — a standard DIN-rail assembly. The Push-in termination accepts solid or ferruled stranded conductors without tools, speeding panel wiring.
Integration and environment
The BaseUnit includes automatic encoding (HW functional status FS10 and higher) so the I/O module is keyed to the correct slot type. Isolation is tested at 3 100 V DC between the backplane bus and supply voltage, and between process terminals and supply voltage. Operating temperature range: -30 to 60 °C horizontal installation, -30 to 50 °C vertical. Maximum installation altitude 2 000 m standard, with higher altitudes available on request. An optional system-integrated shield connection is supported.
Lifecycle and sourcing
This is a standard catalog item in the SIMATIC ET 200SP family, sourced through Siemens distribution channels. For BOM-line commitments, availability and current pricing are confirmed at quote time against an RFQ.
