Fixed 5 m shielded bus cable for ET connection nodes

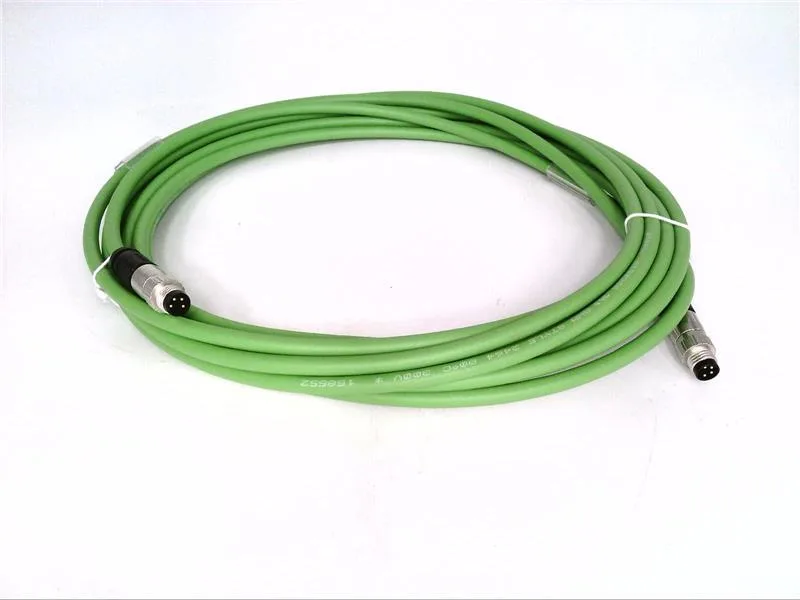

This 6ES7194-2LH50-0AA0 is a flexible cable (4-core), pre-assembled at both ends with 2× M8 plugs, 4-pin, shielded, in a 5 m length. It is designed for connecting ET-CONNECTION nodes such as SIMATIC ET 200AL in degree of protection IP65/67. The cable is silicone-free and uses a PVC sheath with an overlapped aluminum-clad foil plus braid shield for EMI protection.
Temperature rating and mechanical limits for panel routing
Cable rated for ambient temperatures from -40 °C to 80 °C during operation. For installation, assembly can be done down to -30 °C. The permissible single-bend radius is a tight 20 mm, and multiple bends need at least 40 mm. For continuous cable carrier use, it supports 1 million bending cycles at 100 mm radius, 4 m/s speed, and 4 m/s² acceleration.
