What this EM 221 module is for

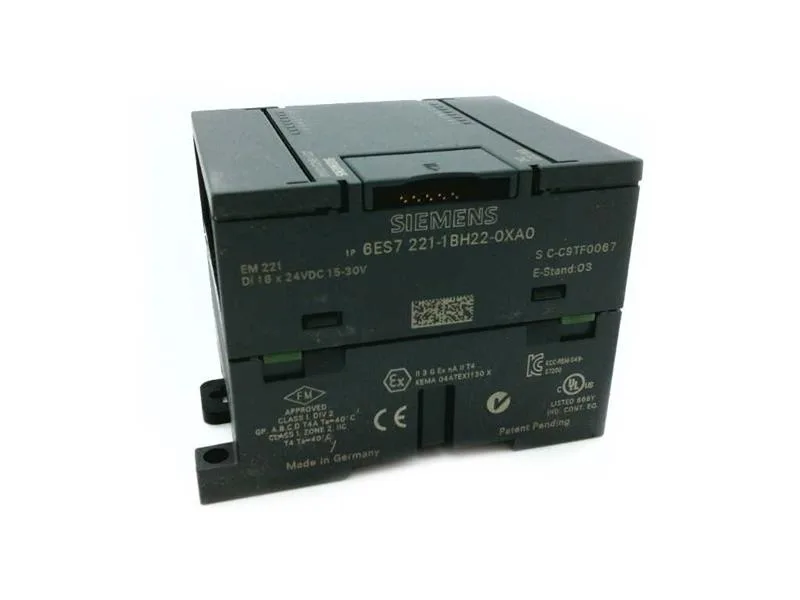

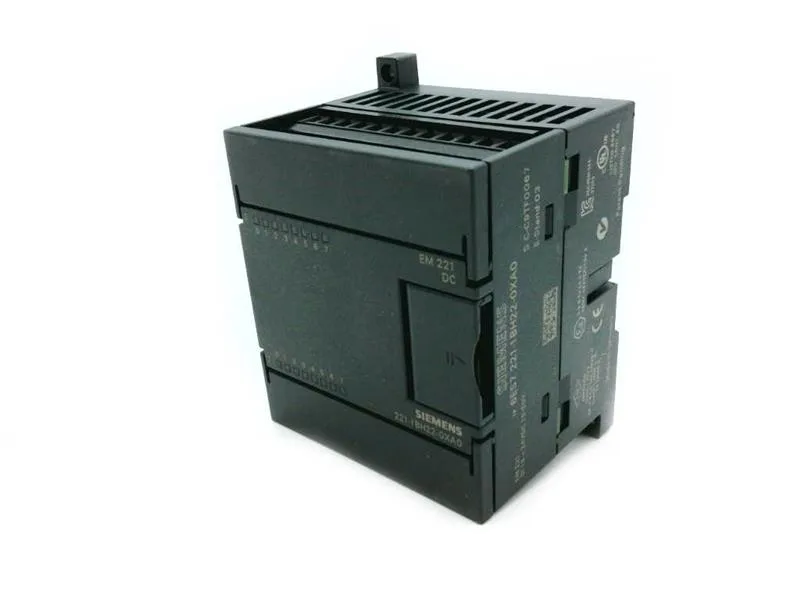

The Siemens 6ES7221-1BH22-0XA0 is a SIMATIC S7-200 EM 221 digital input expansion module, designed exclusively for S7-22X CPUs. It adds 16 discrete inputs to the base controller, accepting 24 V DC signals in either sinking or sourcing configuration — so it handles both NPN and PNP field devices without rewiring the common rail. Each input channel draws a typical 4 mA at the "1" signal level, with a guaranteed ON threshold of +15 to +30 V DC and an OFF threshold of 0 to 5 V DC. The 4.5 ms max transition time from 0-to-1 filters contact bounce and slow sensor edges, but it also sets the minimum detectable pulse width — a fast encoder or proximity switch running above ~110 Hz may be missed without a faster input module.
Isolation and wiring notes
Channel groups of 4 are optically isolated from each other and from the backplane bus, tested at 500 V AC for one minute. This means a short on one group won't pull down the others — useful when mixing 24 V sensors from different power supplies on the same module. The module accepts 2-wire proximity sensors with a max permissible quiescent current of 1 mA — above that the sensor's own leakage may be read as a false "1". Plug-in I/O terminals simplify replacement without disconnecting field wiring. Maximum cable runs are 500 m shielded, 300 m unshielded — adequate for most machine-mounted sensor clusters but tight for a distributed fieldbus topology where sensors sit 100+ m from the cabinet.
Siemens lists this module at a current lifecycle stage — still supported for existing S7-200 installations but not a design-in for new machines. The S7-200 platform has been superseded by the S7-1200 and S7-1500 families, which use different form factors and backplane protocols. For a line running an S7-22X CPU, this EM 221 is the correct spare. No pin-compatible direct replacement exists in the newer S7-1200 range — a CPU swap and rewiring would be required to migrate.
